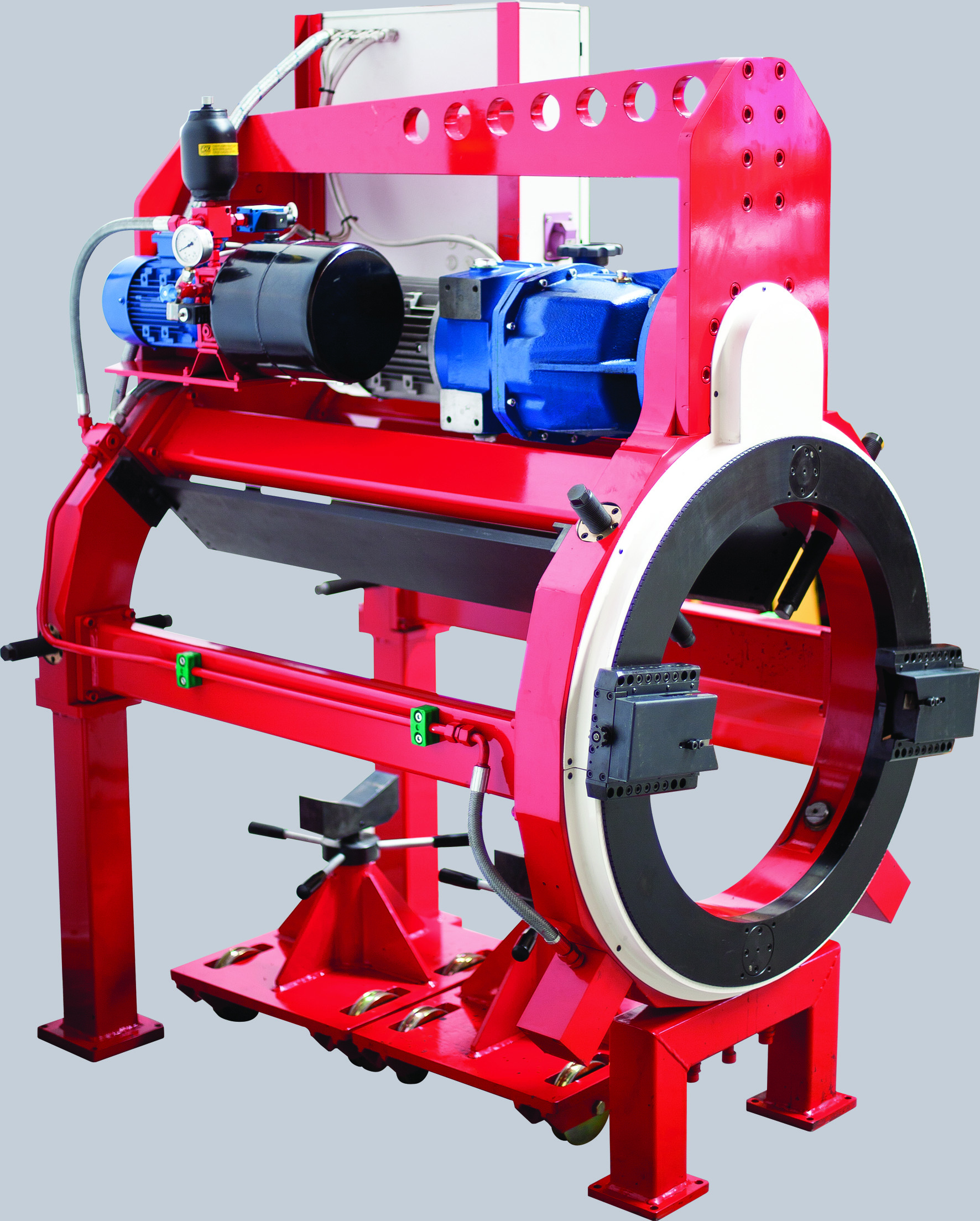

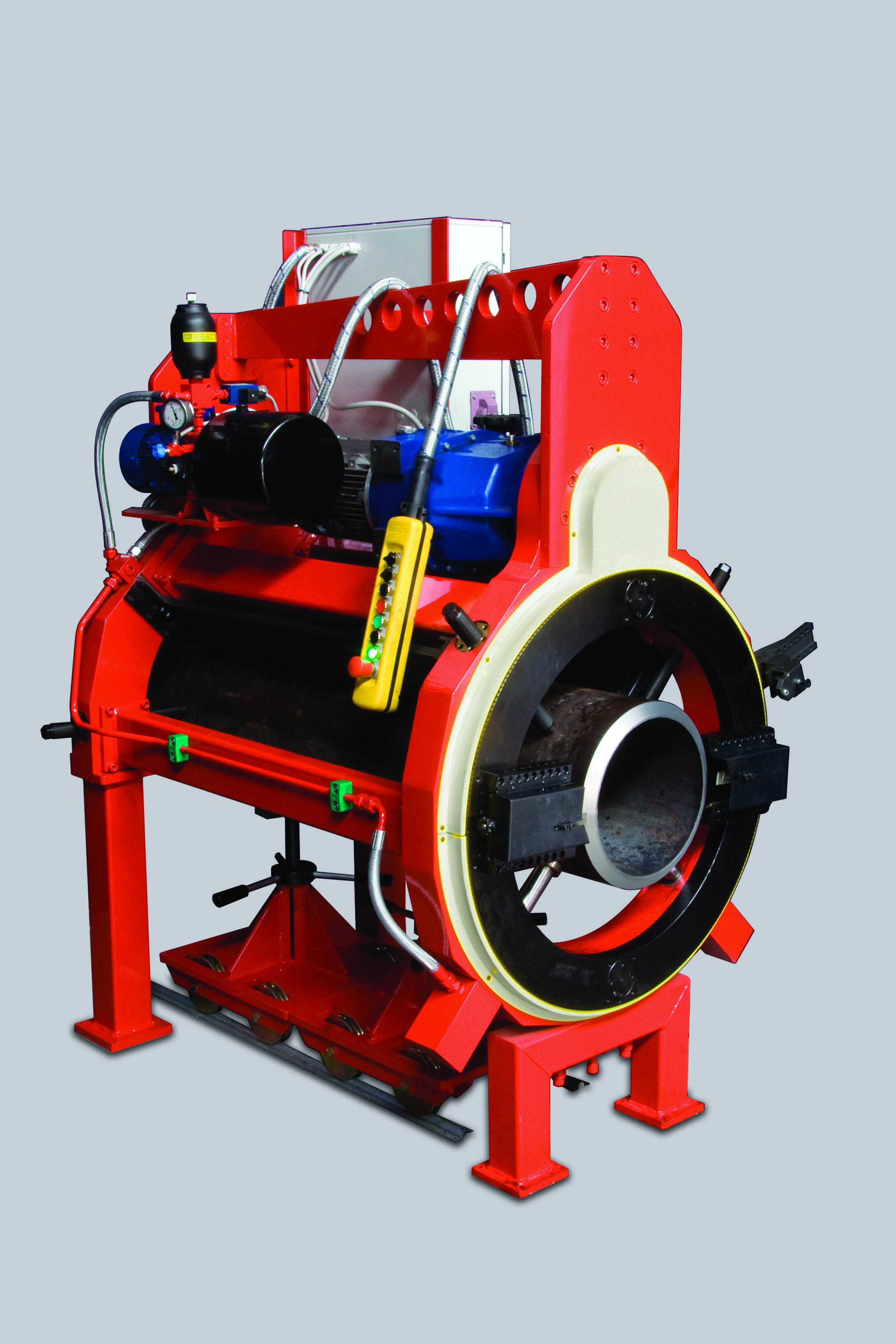

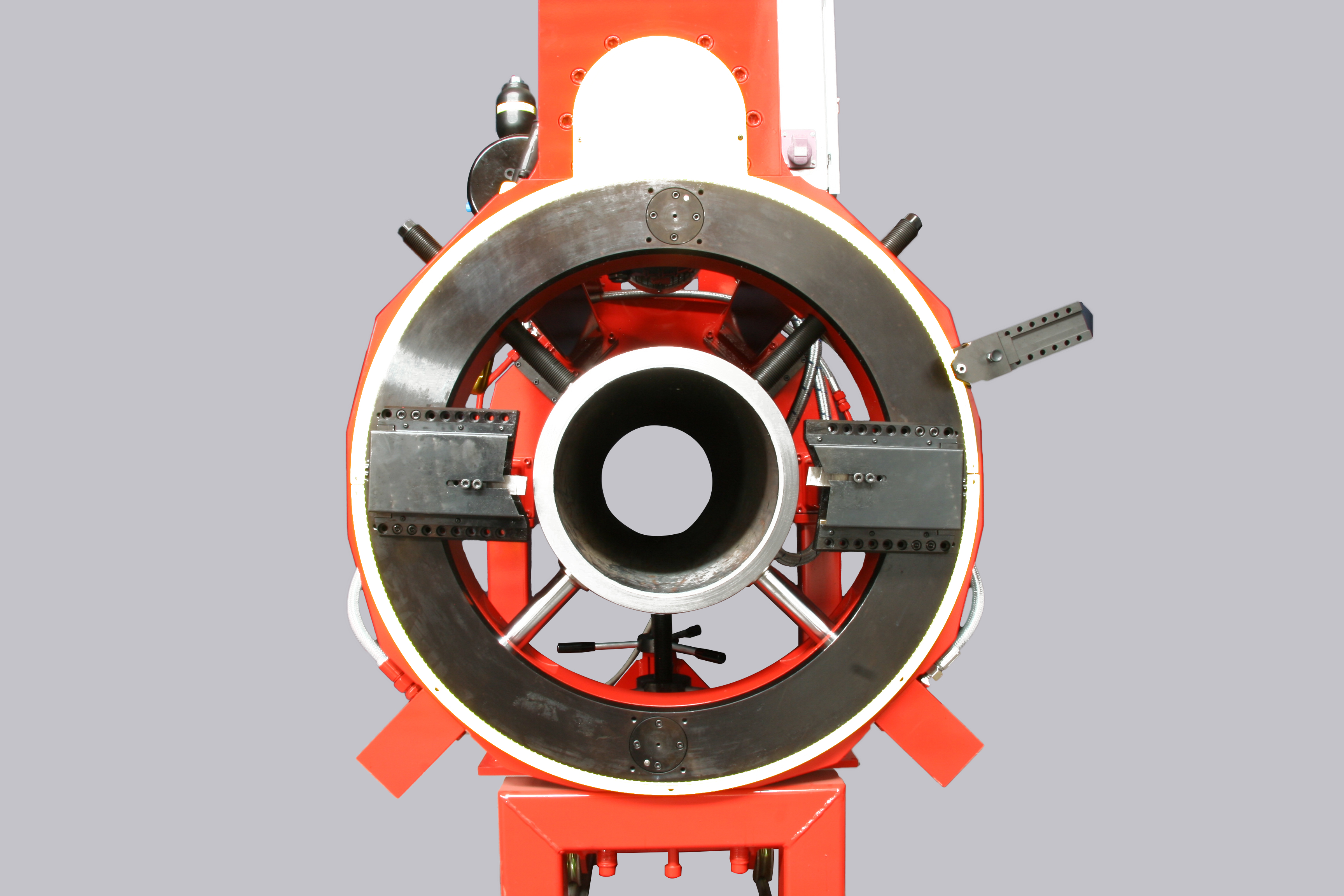

Stationary pipe cold cutting and beveling machine Hycube 24 is a machine for cutting and beveling operations on series of pipe segments from 12” to 24” OD.
Hycube 24 has a very stable steel chassis designed for quick and precise setup operations. Stationary pipe cold cutting and beveling machine Hycube 24 is equipped with on board hydraulic power pack to reduce the encumbrance and to have an all-in-one piece of equipment enabling the semi-automatic lock/ release operations of the pipe.
The rotation speed is adjustable through an on board speed-change drive. Conceived both for a standard positioning of the pipe as well as the positioning on pipe holders on rails.
MAIN FEATURES:
- Stationary pipe cutting and beveling machine for pipe diameters from 12” to 24”;
- On board hydraulic Power Pack;
- Semi-automatic Lock/Release function through an on board hydraulic power pack;
- Adjustable speed rotation achieved by an on board speed-change drive;
- Stable Steel Chassis designed for a quick and precise setup;
- Pipe positioning with pipe stand on rails.
