Description
Height adjustable, multi-function, pipe roller stand PJ4 MULTI STAND
The PJ4 is height adjustable with two fine adjusters. The wheel heads can also be independently adjusted.
The head unit of the PJ4 Multi Stand is ‘Bolt On’ and can be utilised as a floor or bench mounted unit.
Full details and models available in the data sheet.
PRODUCT FEATURES
Maximum weight load is 2000 kgs.
Maximum pipe diameter is 48″.
Available with standard and large V head’s with multiple wheel kit options.
Stainless steel covers available for exotic materials.
Height adjustable with two fine adjusters.
BOLT ON WHEEL CARRIER OPTIONS
PJ4 BASE UNITS
PJ4B – Load capacity KG/LBS: 2,000/4400 – Weight KG/LBS: 20/45 – Pipe size: up to 48″
BOLT ON WHEEL CARRIER
RPS4 – Load capacity KG/LBS: 2,000/4400 – Weight KG/LBS: 7 – Pipe size: up to 48″
WHEEL KIT OPTIONS
SWK3 – Load capacity KG/LBS: 1,000/2,205 – Weight KG/LBS: 3.4/7 – Material: Steel
SWK3SS – Load capacity KG/LBS: 1,000/2,205 – Weight KG/LBS: 3.4/7 – Material: Stainless Steel
NWK3 – Load capacity KG/LBS: 450 – Weight KG/LBS: 2/5 – Material: Nylon
PWK3 – Load capacity KG/LBS: 720 – Weight KG/LBS: 2/5 – Material: Polyurethane
BALL TRANSFERS
BTK3 – Load capacity KG/LBS: 600/1320 – Weight KG/LBS: 2.5/6 – Material: Steel
BTK3SS – Load capacity KG/LBS: 600/1320 – Weight KG/LBS: 2.5/6 – Material: Stainless Steel
LARGE V HEAD OPTIONS
LARGE V HEAD OPTIONS
LVH – Load capacity KG/LBS: 2,000 – Weight KG/LBS: 7.6 – Pipe size: 1”-12”
SSC4 – Load capacity KG/LBS: 2,000 – Weight KG/LBS: 1 – Pipe size: 1”-12”

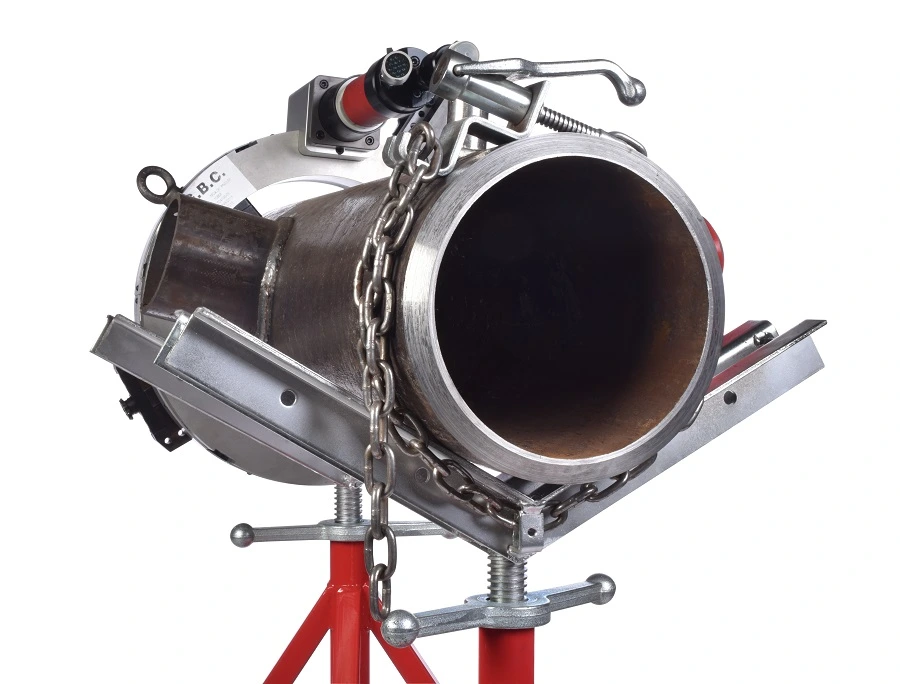

HDK – Load capacity KG/LBS: N/A – Weight KG/LBS: 7 – Pipe size: 1”-12”
LARGE V HEAD WHEEL KIT OPTIONS
SWK4 –Load capacity KG/LBS: 2,000 – Weight KG/LBS: 10.5 – Material: Steel
SWK4SS – Load capacity KG/LBS: 2,000 – Weight KG/LBS: 10.5 – Material: Stainless Steel
NWK4– Load capacity KG/LBS: 450 – Weight KG/LBS: 8.5 – Material: Nylon
SMALL V HEAD OPTIONS
SMALL V HEAD
PJ3V- Load capacity KG/LBS: 1,000/2,205 – Weight KG/LBS: 3.4/7 – Pipe size: up to 12”
STAINLESS STEEL SLEEVES
SSC3 – Load capacity KG/LBS: 1,000/2,205 – Weight KG/LBS: 1.0/2 – Pipe size: 1”-12”
WHEEL KIT OPTIONS
SWK3 –Load capacity KG/LBS: 1,000/2,205 – Weight KG/LBS: 3.4/7 – Material: Steel
SWK3SS – Load capacity KG/LBS: 1,000/2,205 – Weight KG/LBS: 3.4/7 – Material: Stainless Steel
NWK3 – Load capacity KG/LBS: 450 – Weight KG/LBS: 2/5 – Material: Nylon
BALL TRANSFERS
BTK3 – Load capacity KG/LBS: 600/1320 – Weight KG/LBS: 2.5/6 – Material: Steel
BTK3SS – Load capacity KG/LBS: 600/1320 – Weight KG/LBS: 2.5/6 – Material: Stainless Steel
ROLLER BAR HEAD OPTIONS
ROLLER BAR HEAD
RBH3 – Load capacity KG/LBS: 500 – Weight KG/LBS: 4.25 – Material: Steel
RBH3SS – Load capacity KG/LBS: 500 – Weight KG/LBS: 4.25 – Material: Stainless Steel
RBH3N – Load capacity KG/LBS: 500 – Weight KG/LBS: 4.25 – Material: Nylon
PIPE ROLLER HEAD OPTIONS
PIPE ROLLER HEAD
SWK350 -Load capacity KG/LBS: 1,000/2,205 – Weight KG/LBS: 4.9/11 – Pipe size: 4”-12”
SWK350SS – Load capacity KG/LBS: 1,000/2,205 – Weight KG/LBS: 4.9/11 – Pipe size: 4”-12”
NWK350 – Load capacity KG/LBS: 450/990 – Weight KG/LBS: 4.9/11 – Pipe size: 4”-12”
