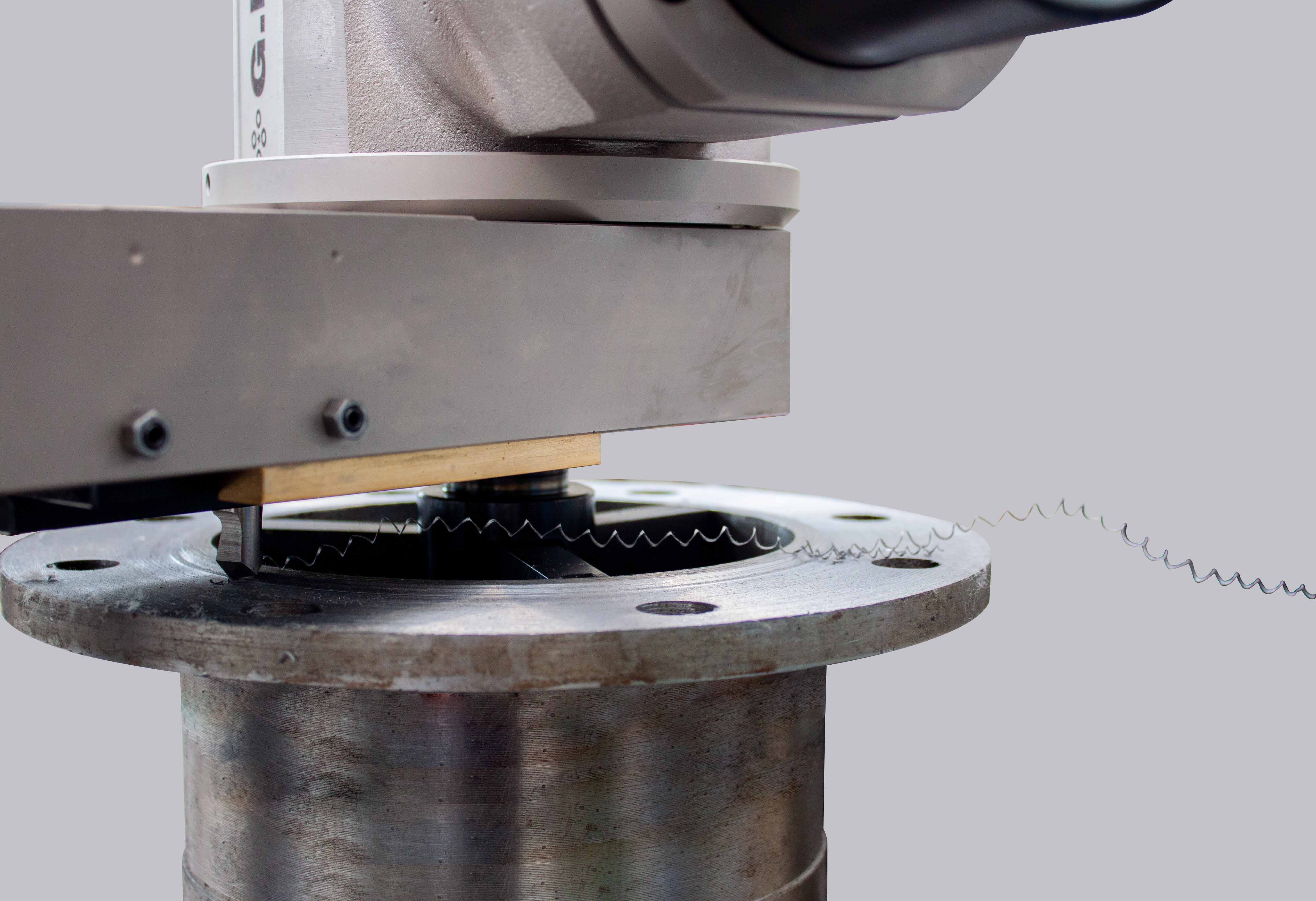

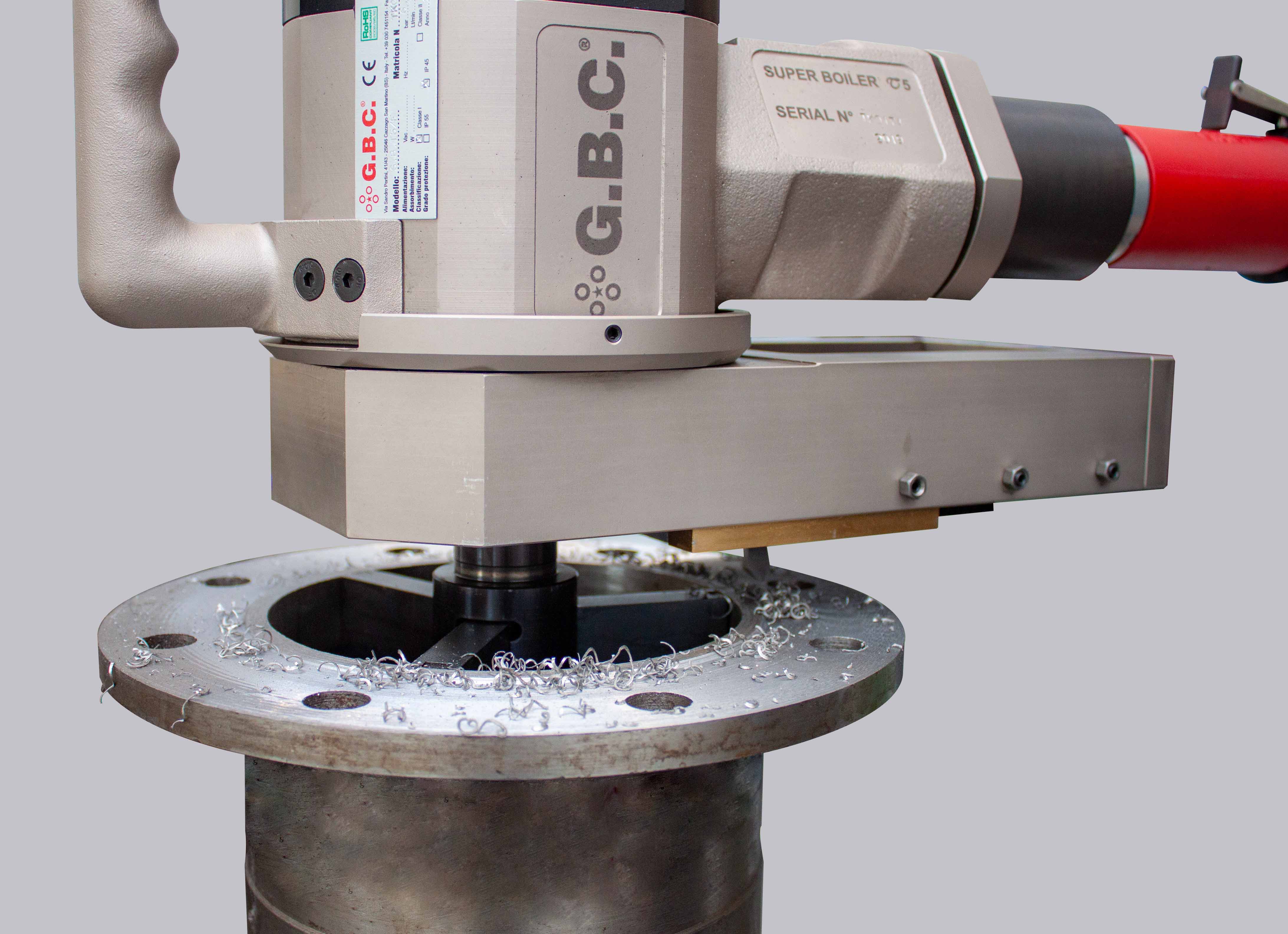

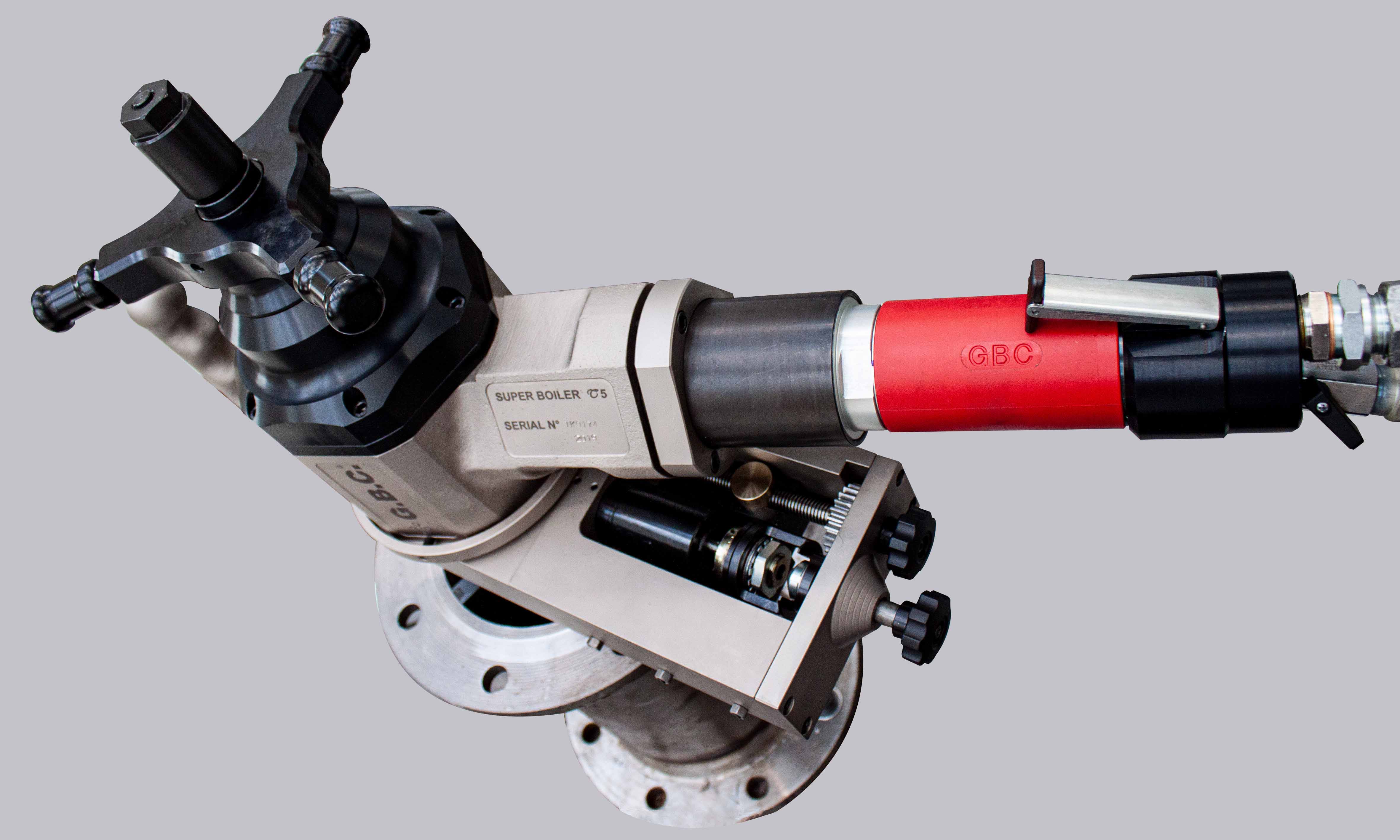

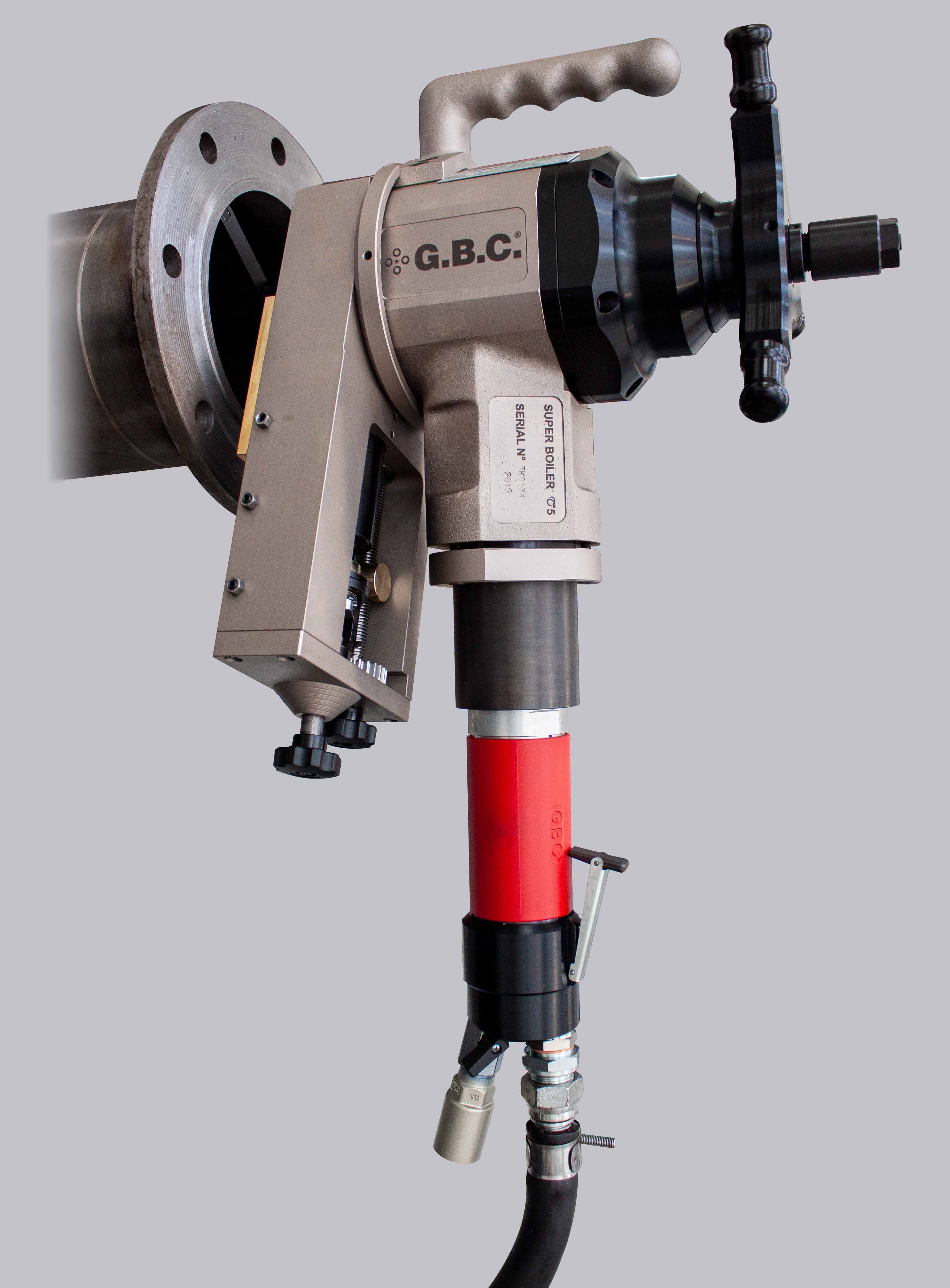

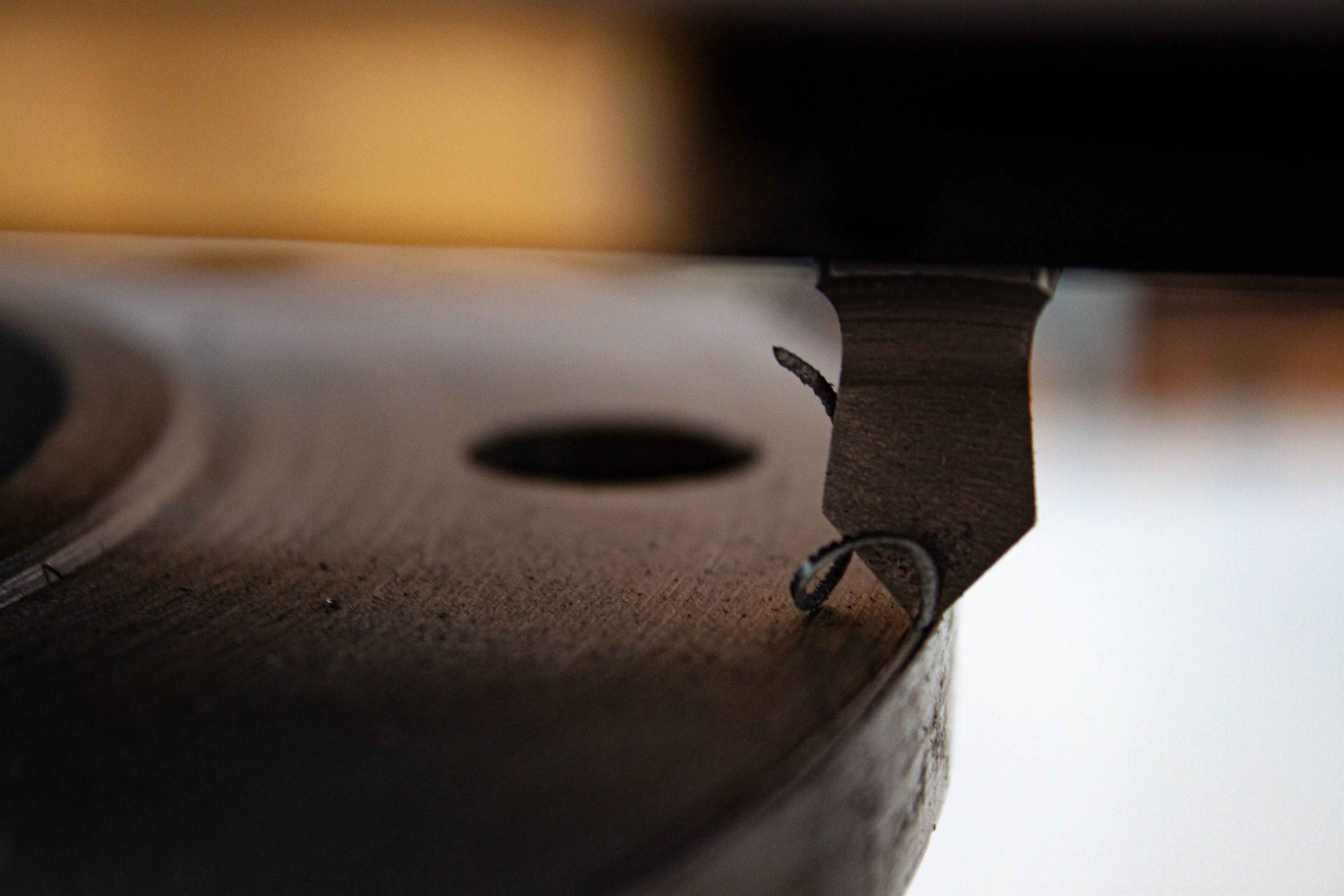

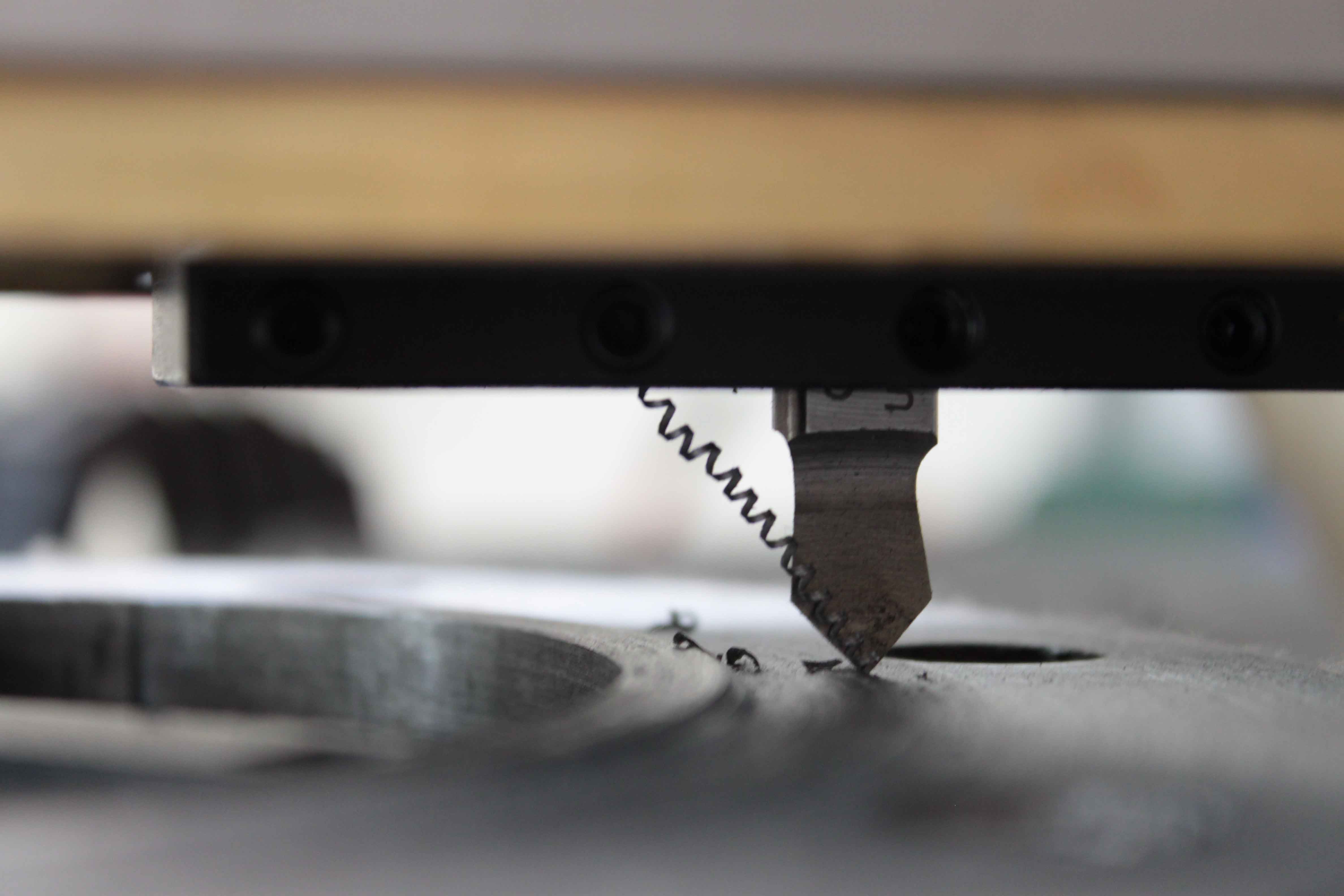

The flange facing machine Superboiler T5 Flange is a machine capable of facing and grooving flanges, valve seats and RTJ flanges from 65 to 400 mm (2,56″ – 15,75″).
The feed of cut is automatic from the o/d inward. Standard stock finishes carried out with step: 0,2 – 0,4 – 0,6 – 0,8 mm
RANGE:
Flange diameter min. 65 max 400 mm
FUNCTIONS:

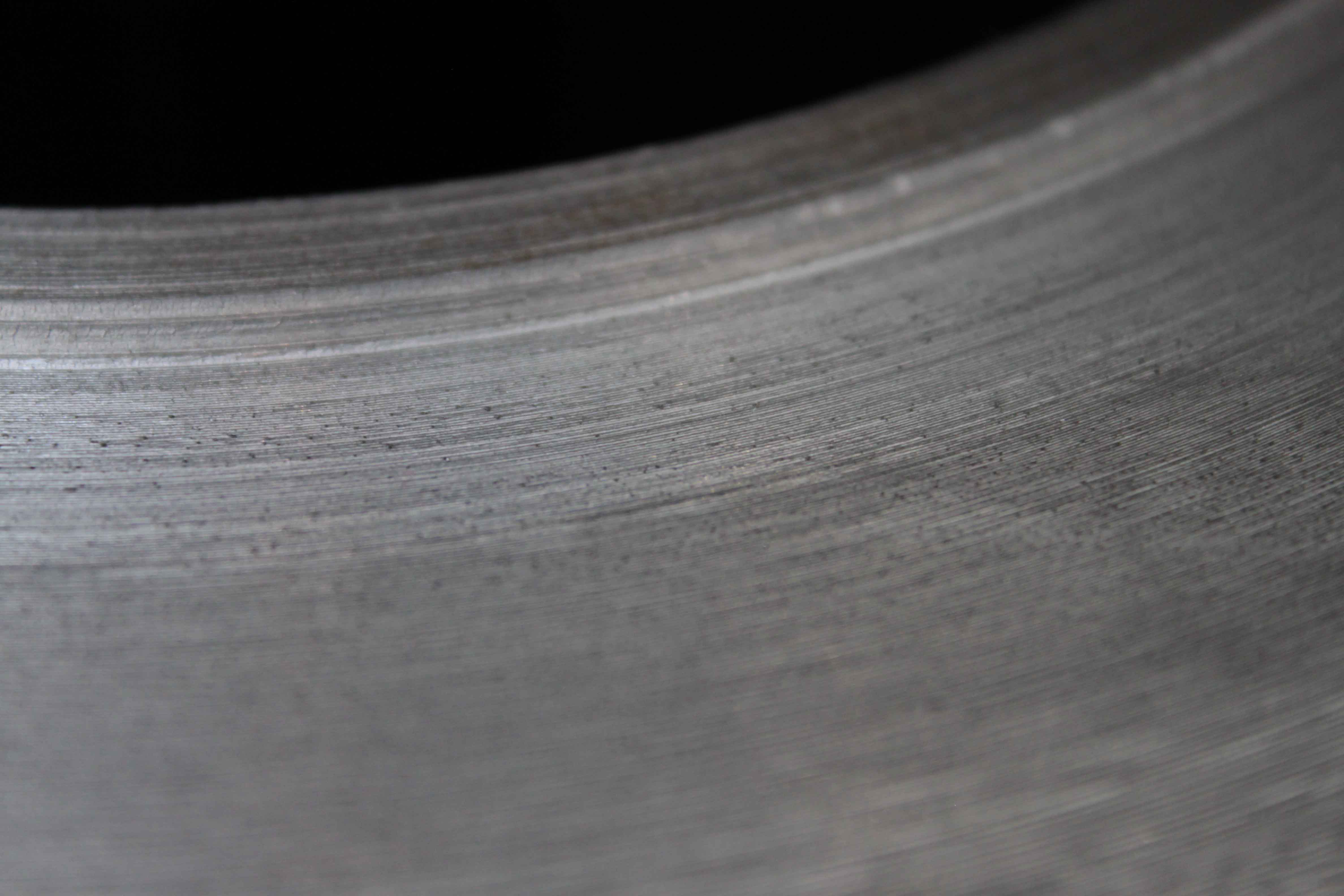

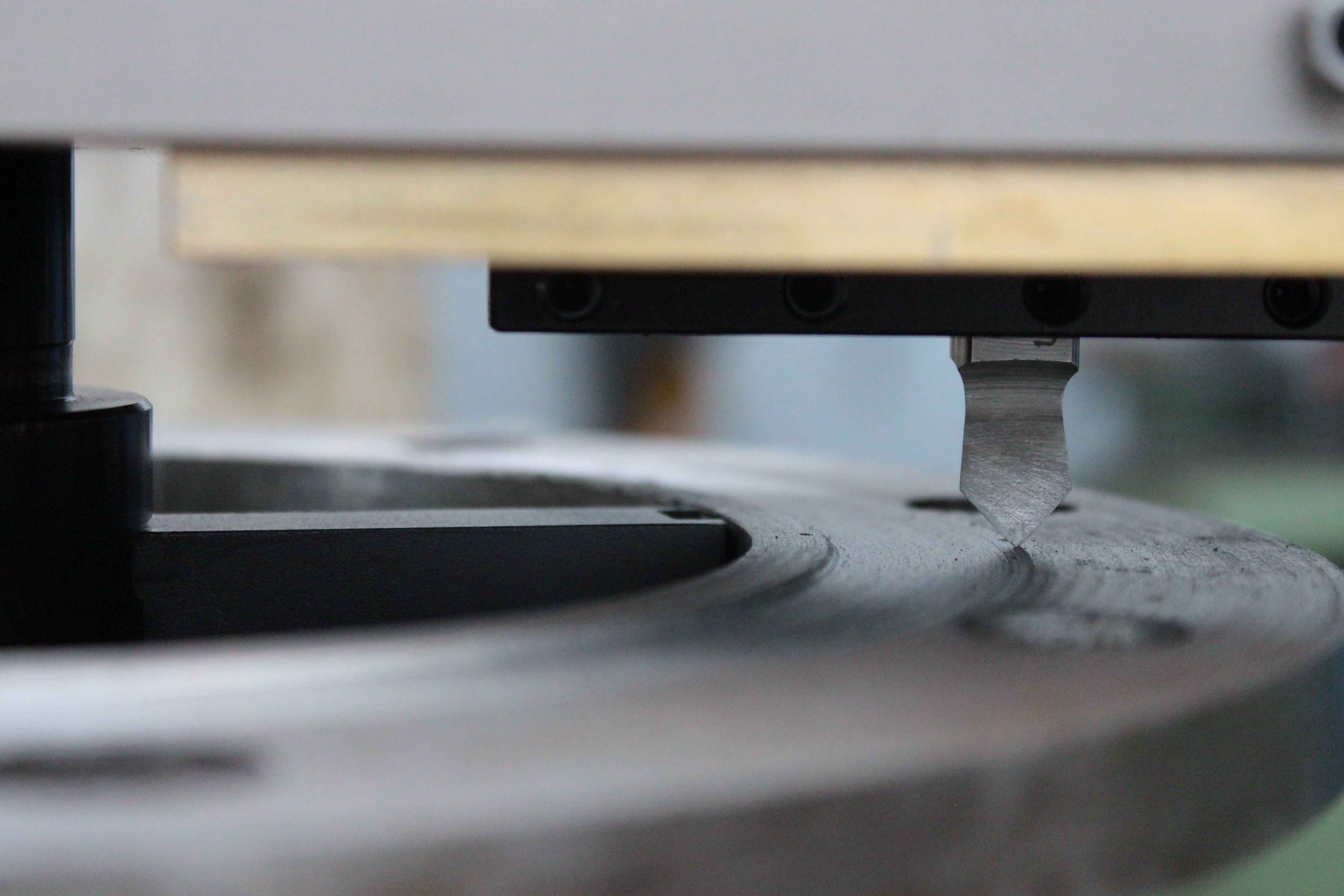

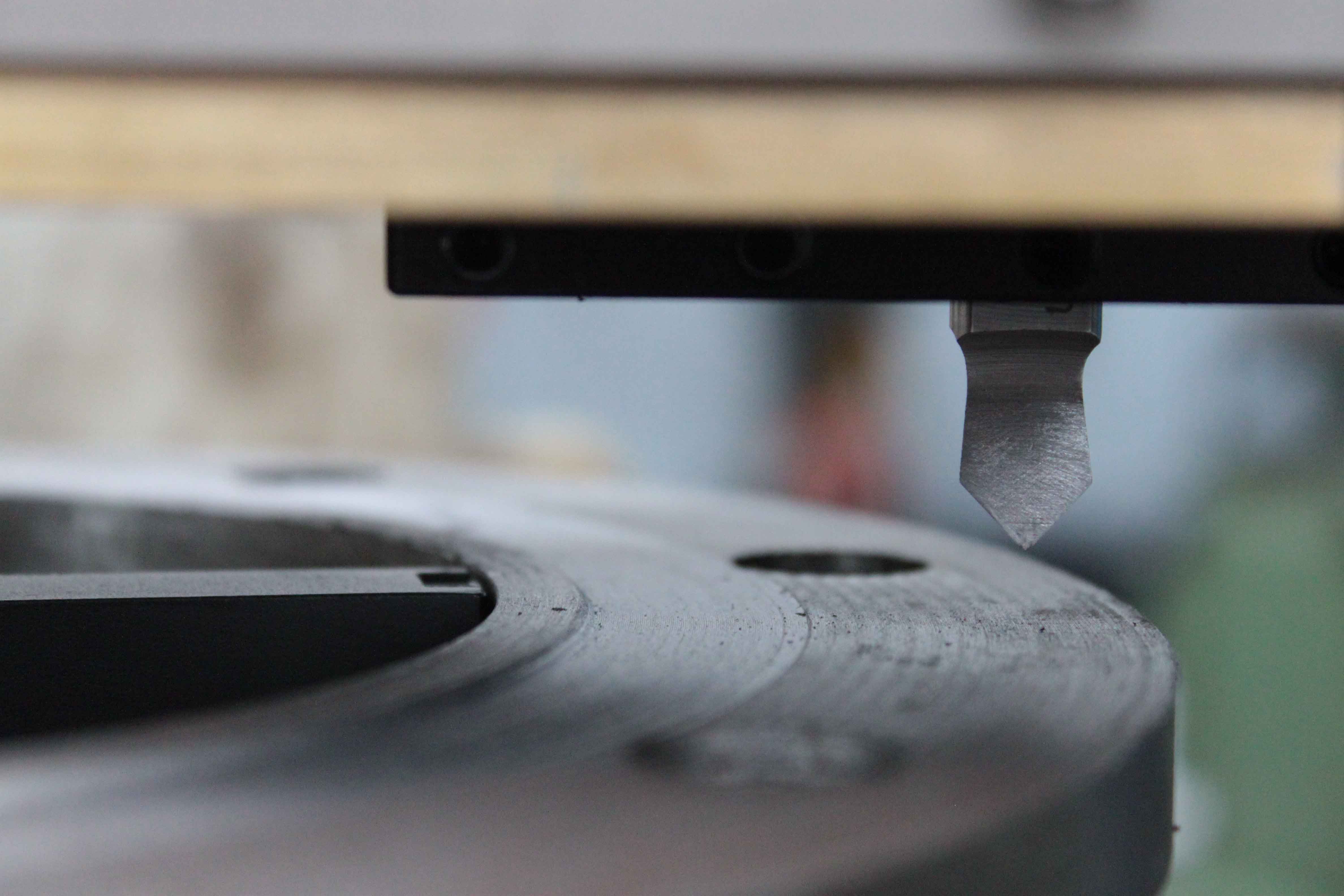

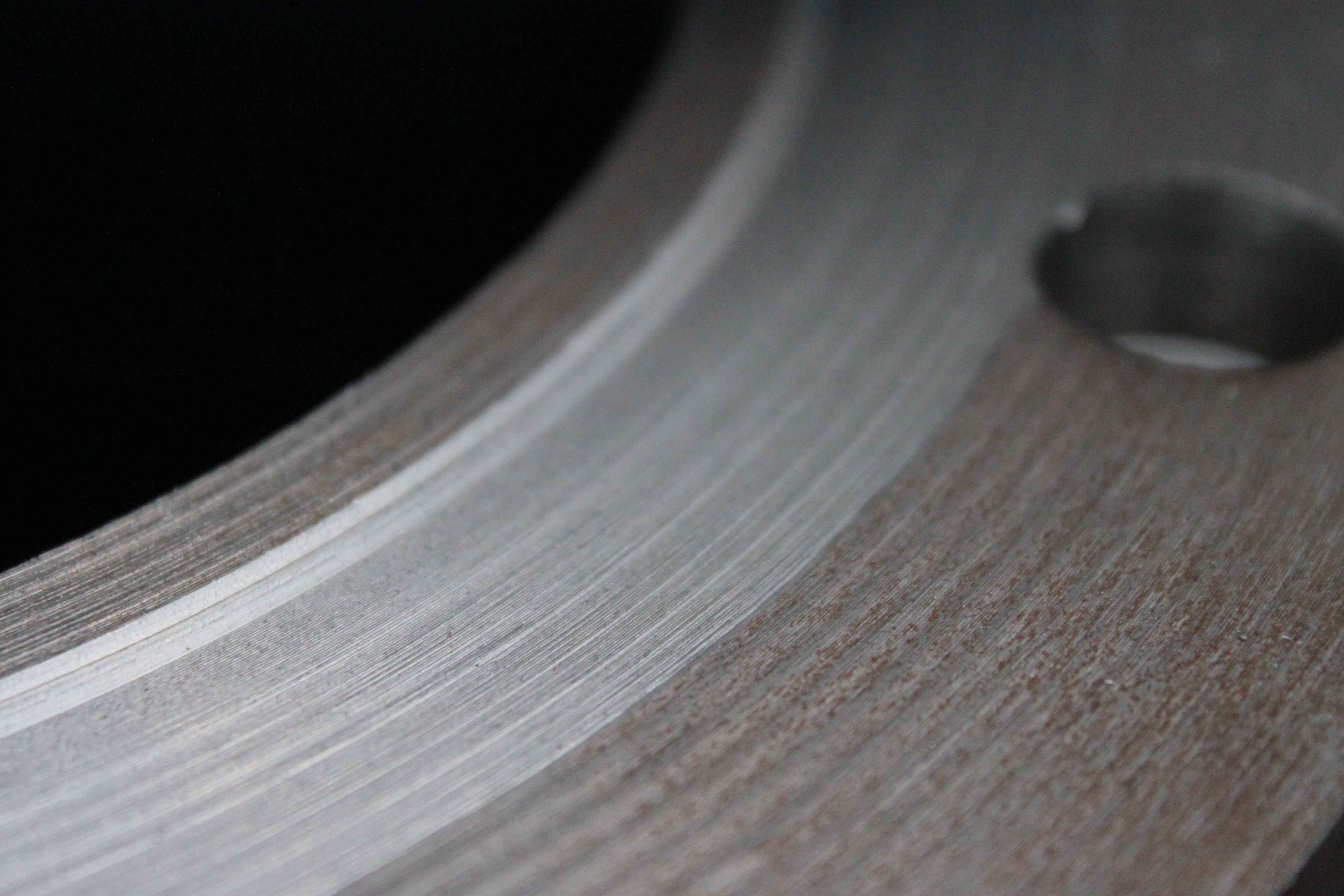

Stock finish, smooth finish, spyral groove, valve seats and gaskets.
MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.
POWER:
Pneumatic, electric or hydraulic
