Description
Portable pipe beveling machine MINI K OD
Range ØE 10-60 mm (0,39″-2,37″)
Pipe beveling machine Mini K OD locks on the OD of the pipes in specific conditions when, for example, it is required not to damage the pipe ID or when the pipe diameter is extremely small.
Our pipe beveling machine is ideal for processing small pipes in the oil & gas field.
The Mini K OD features a 3-points contact self-centering locking system that allow a quick and precise setting procedure.
Pipe beveling machine Mini K is available in pneumatic version, electric version or battery version.
MACHINE FEATURES
RANGE:
Pipe beveling machine 10-60 mm ø ext.
FUNCTIONS:
OD Bevel, ID Bevel, facing.
MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.
POWER:
Pneumatic, Electric or Battery.
LOCKING SYSTEM:
Self-centering with 3 contact points.

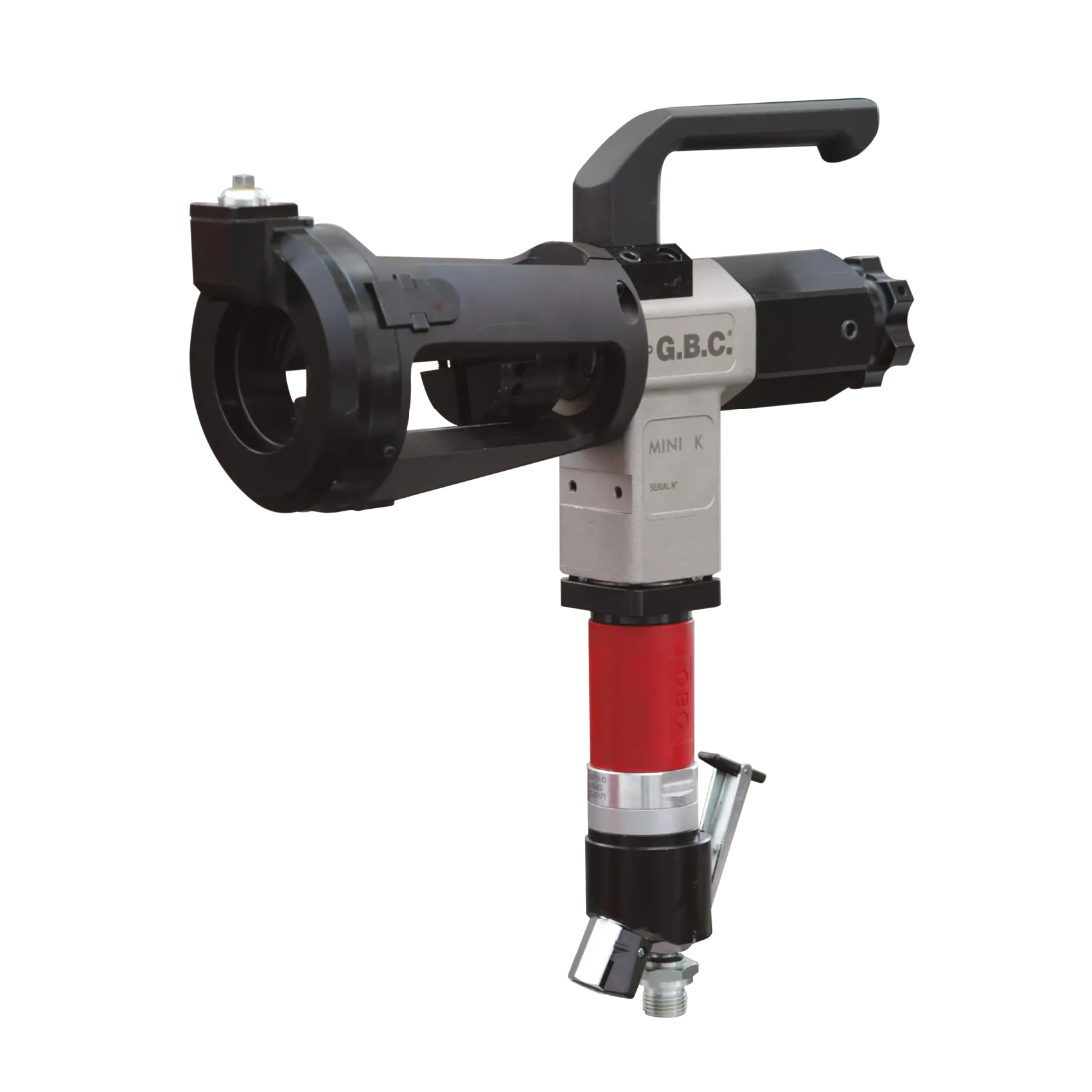

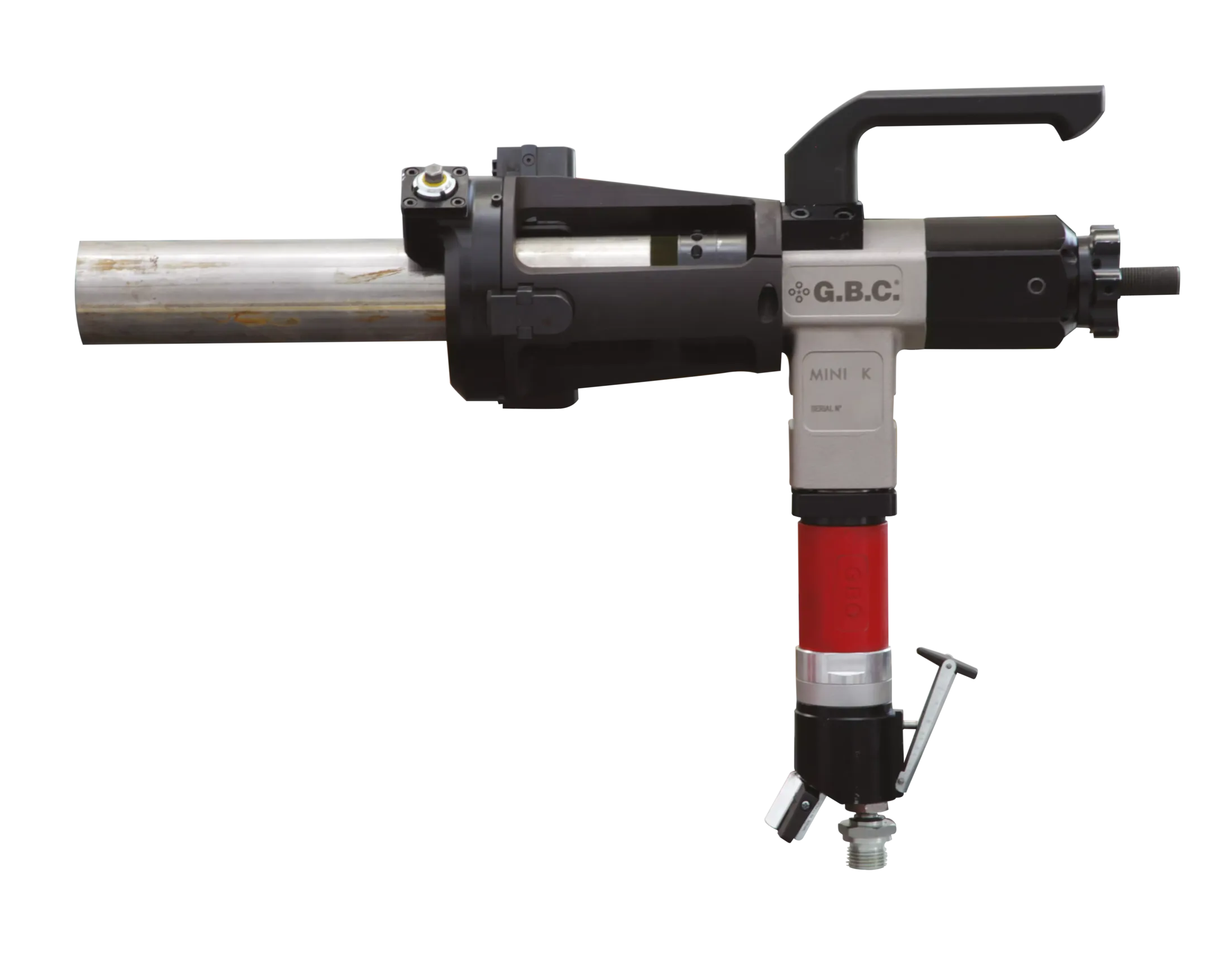

Mini K OD – Pictures
The Mini K OD is a portable pipe beveling machine that is particularly useful in the medical and food sectors as it does not affect the inside of the pipes to be processed. It ensures that the internal surface of the tube is unmodified thanks to the external locking system.
Our tube chamfering machine was created to be able to enter the windows of flat or linear tube sheets when they are repaired, built or joined.
Contact us if you are interested in the Mini K OD pipe beveling machine or would like to receive a free quote.
