Description
Portable pipe beveling machine BOILER 1-4 K AUTO
Range Øi 23-108 mm (0,90″-4,25″)
The pipe beveling machine Boiler 1-4 K Auto is a completely automatic machine, with pipe id self centering & locking and auto feed of toolholder. This extremely quick machine is triggered by foot or hand switch, engineered for heavy duty cycle.
The pipe beveling machine Boiler 1-4 K Auto is the best for high volume repetitive works on heat exchangers, boilers and condensers.
The machine execute any kind of tube head works such as tube trimming, tube to tube plate seal weld removal, tube plate face grooving, membrane removal on tube walls.
Boiler 1-4 K Auto is a pipe beveling machine equipped with automatic stop set feeding sensor, which allow getting precise trimming operation in any condition.
MACHINE FEATURES
RANGE:
Pipe beveling machine for pipes 23 – 108 mm ø ID.
FUNCTIONS:
Bevelling, facing, counterboring.
MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.
POWER:
Pneumatic.
CHUCK:
With 4 seats for tools.

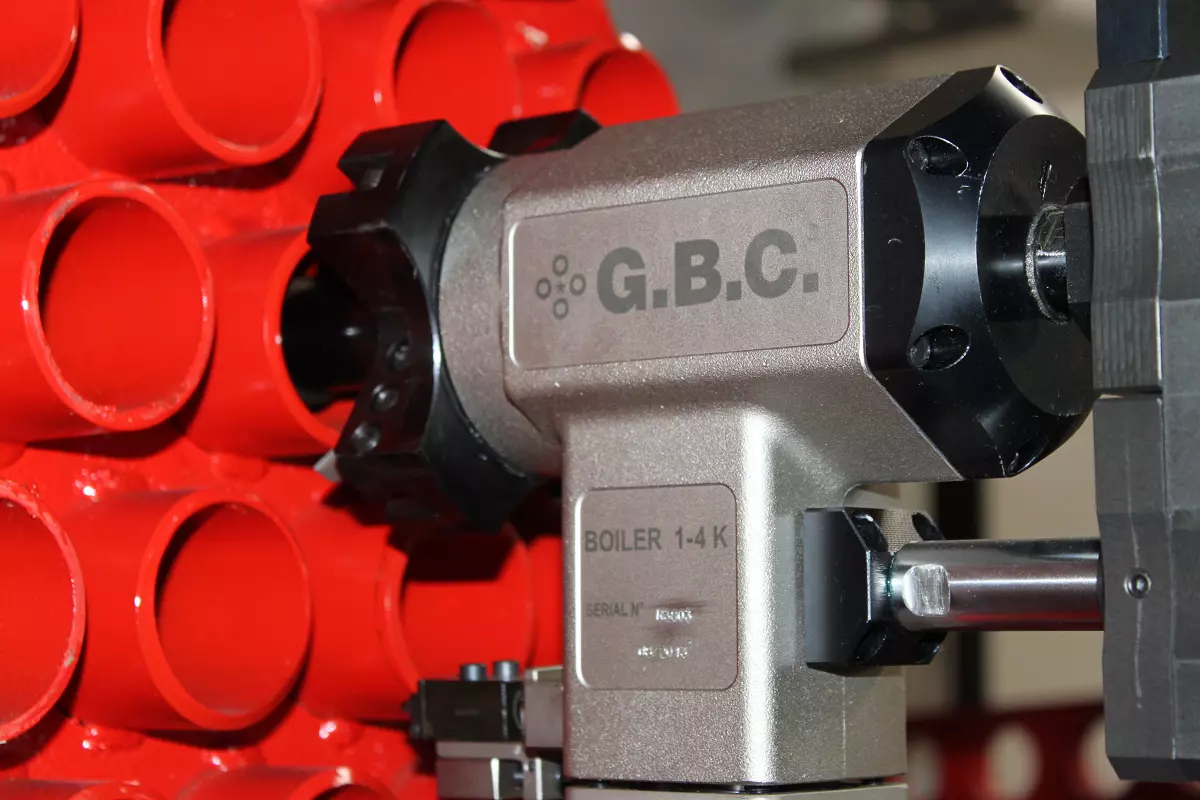

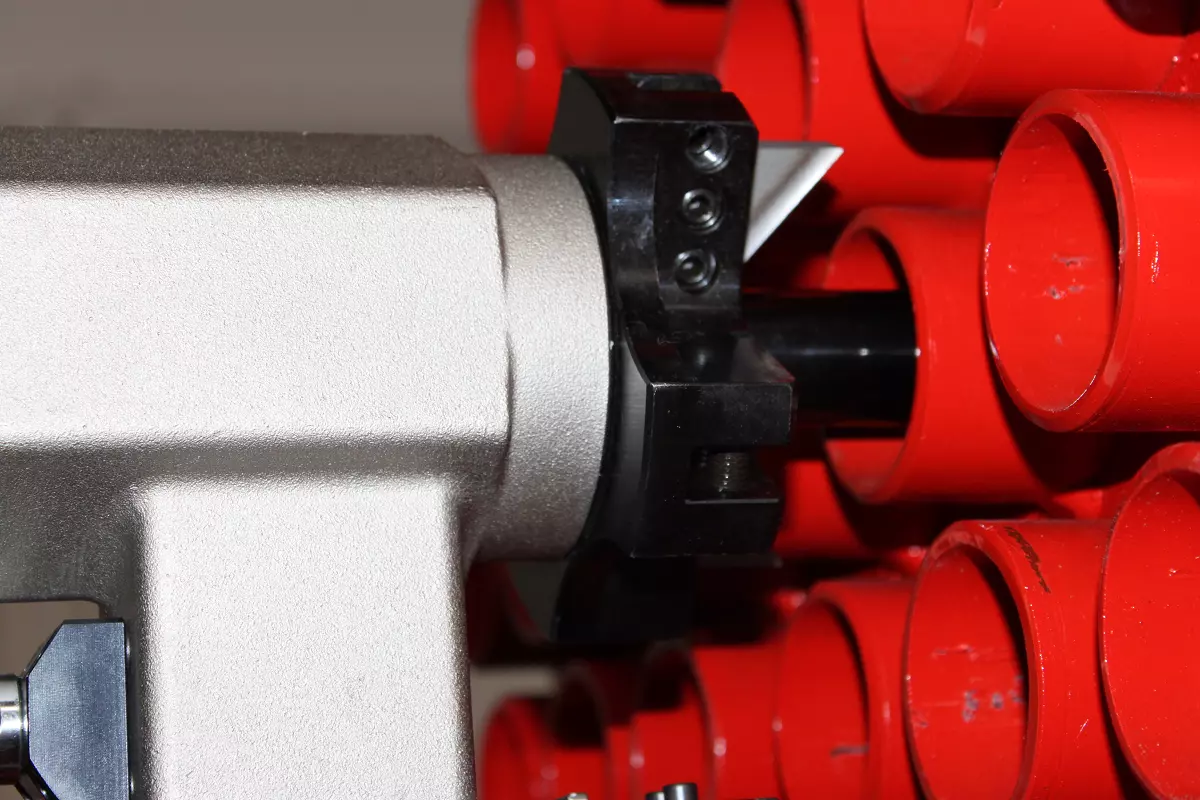

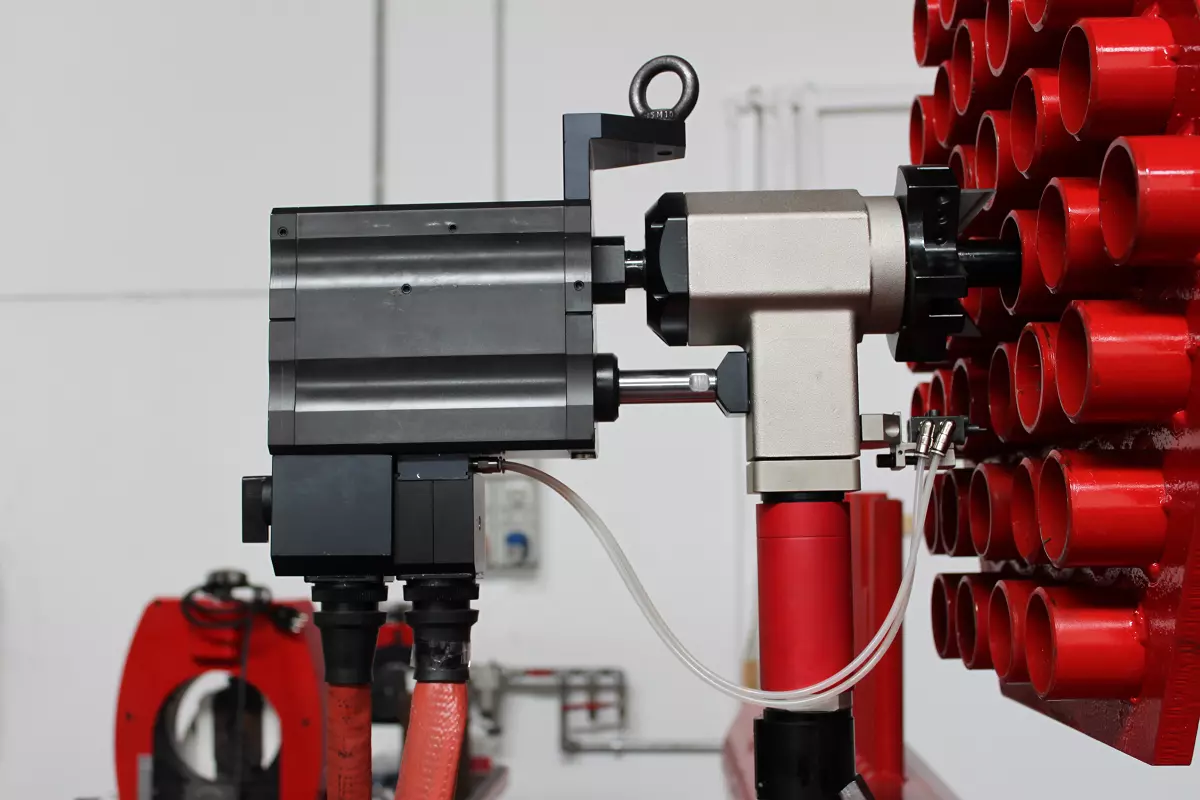

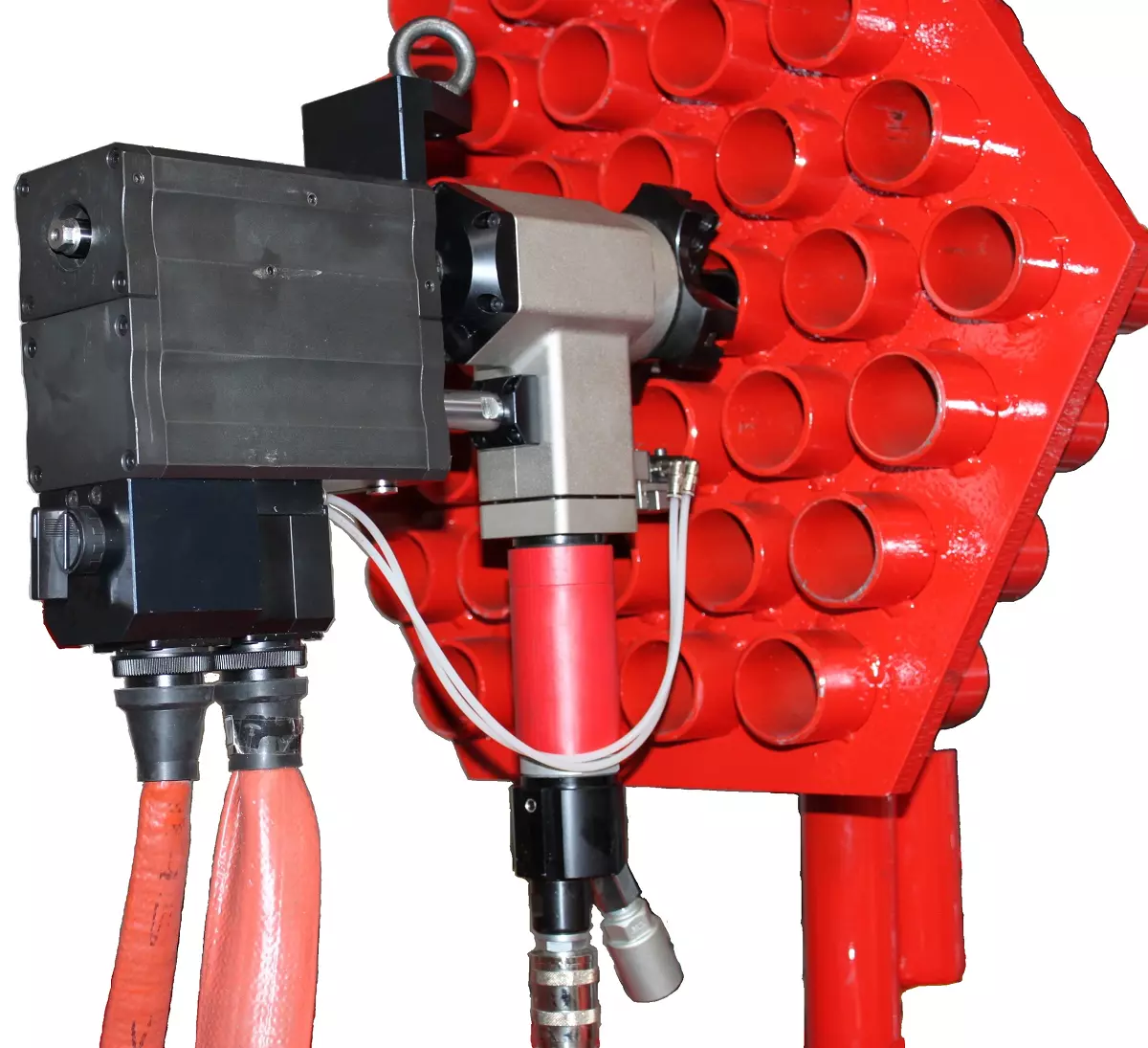

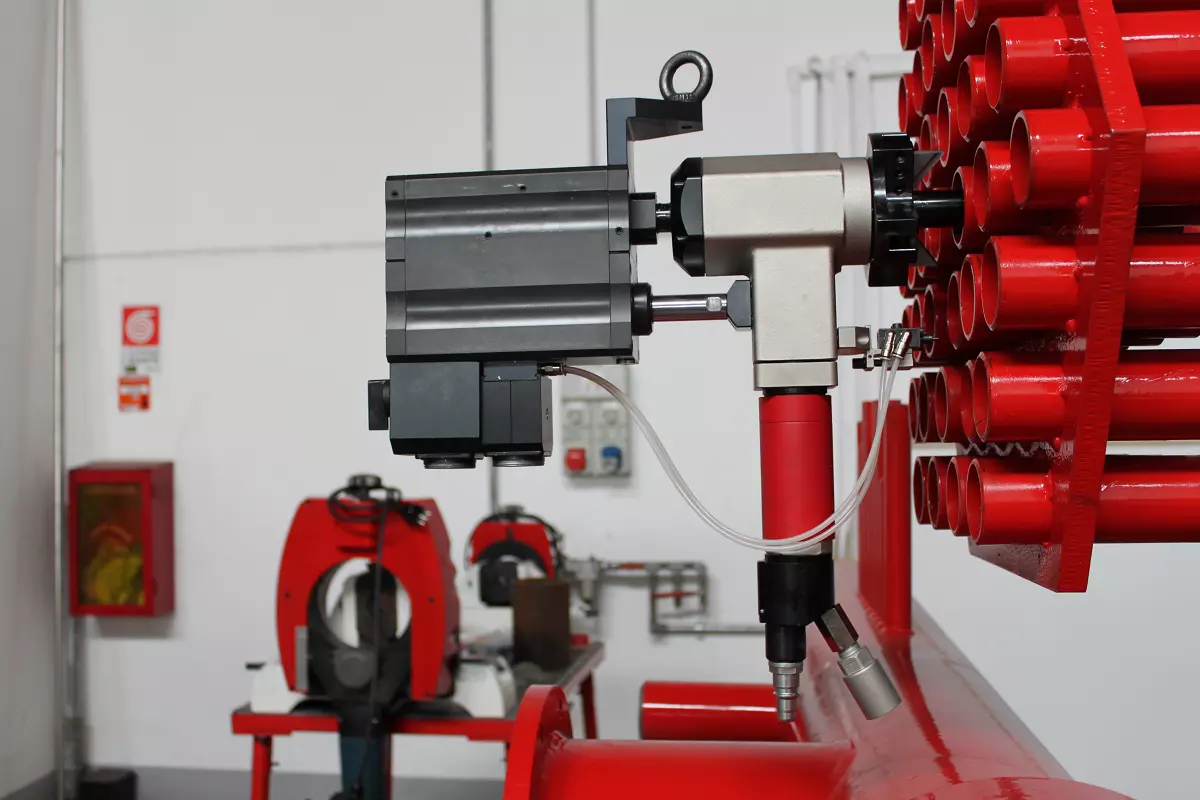

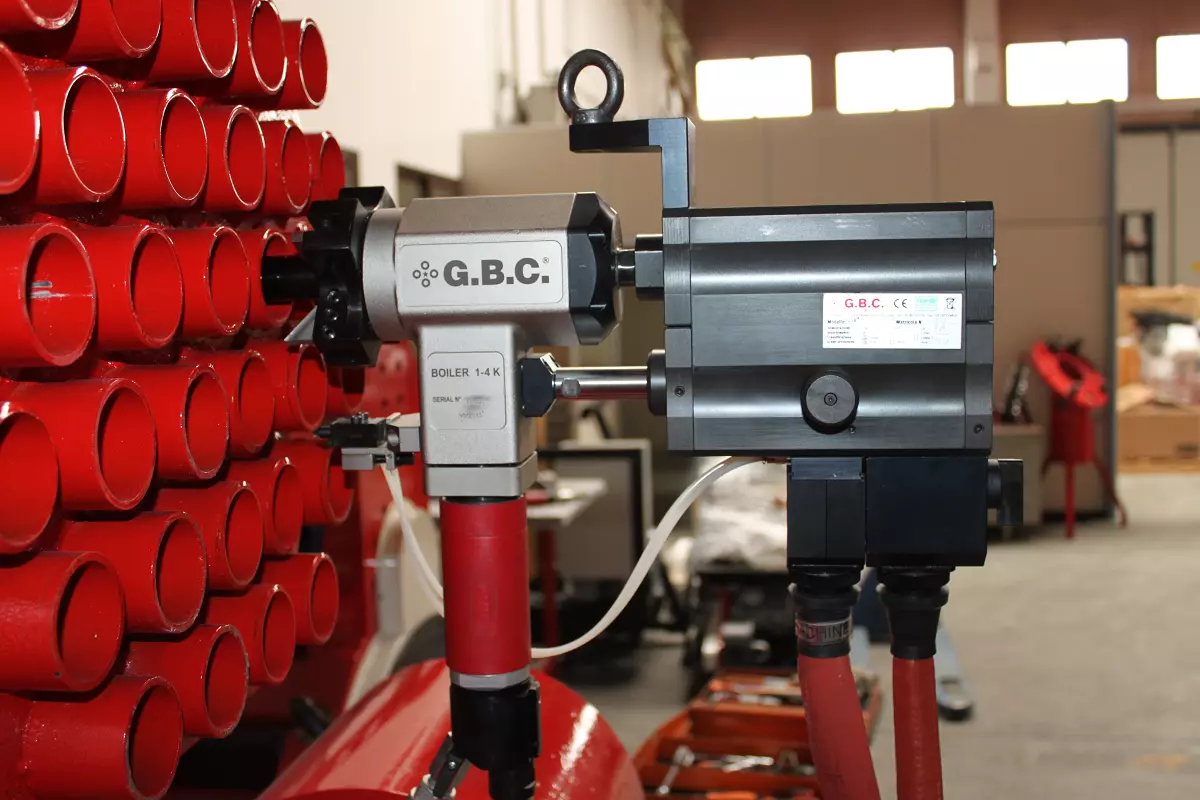

Boiler 1-4 K AUTO – Pictures
Boiler 1-4 K AUTO – Video
The Boiler 1-4 K Auto pipe cutter is very fast because it is completely automatic and is activated with a single command.
The Boiler 1-4 K Auto is an excellent pipe beveler in preparation for welding procedures, it has a depth sensor that allows you to obtain identical and precise series processing and is also equipped with a balancer hook. The pipe cutter has a pneumatic control box that controls its operation.
Contact us if you are interested in the Boiler 1-4 K Auto pipe cutter or would like to receive a free quote.
