Crawling pipe cutting machine

TAF

Minimum diameter acceptable Øe 406,4 mm (16”)

Description

Crawling pipe cutting machine TAF

Minimum diameter Øe 406,4 mm (16”)

Crawling pipe cutting machine TAF, features an innovative chain locking system thanks to which we can grant a perfect stability of the machine during the cutting operations.

The combination of two lateral chains and a central guiding belt ensures to the crawling pipe cutting machine TAF, a high precision as well as a high finishing grade for the execution of the various working phases.

The quick and easy setup and the new design are the added value of the TAF. The feeding system is equipped with rubber wheels which ensure strong grip and therefore enables the machine to be set up in any position.

Crawling pipe cutting machine TAF is available in pneumatic and hydraulic version.

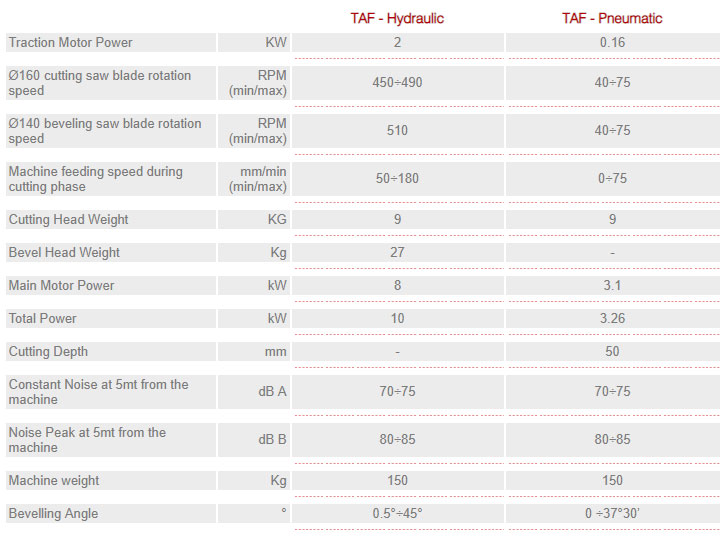

MACHINE FEATURES

RANGE:
Minimum diameter acceptable Øe 406,4 mm (16”).

FUNCTIONS:
Pipe cold cutting, bevelling, facing, counterboring.

MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.

POWER:
Pneumatic, hidraulic.

Enquire now
Download the data sheet

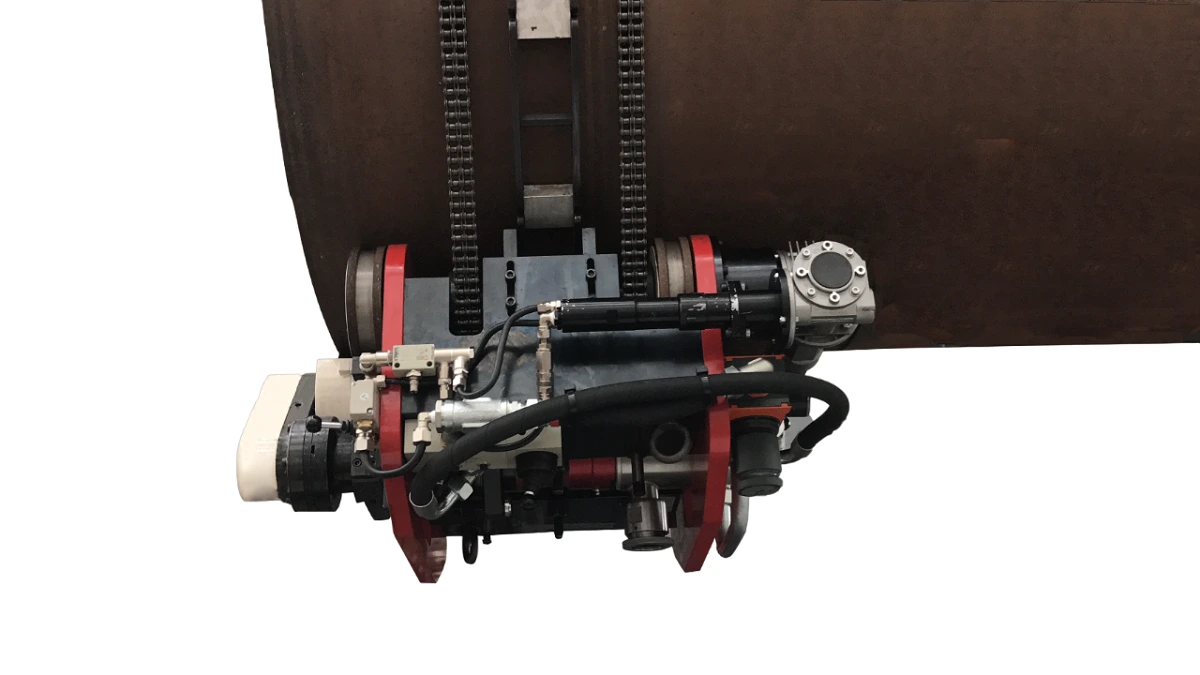

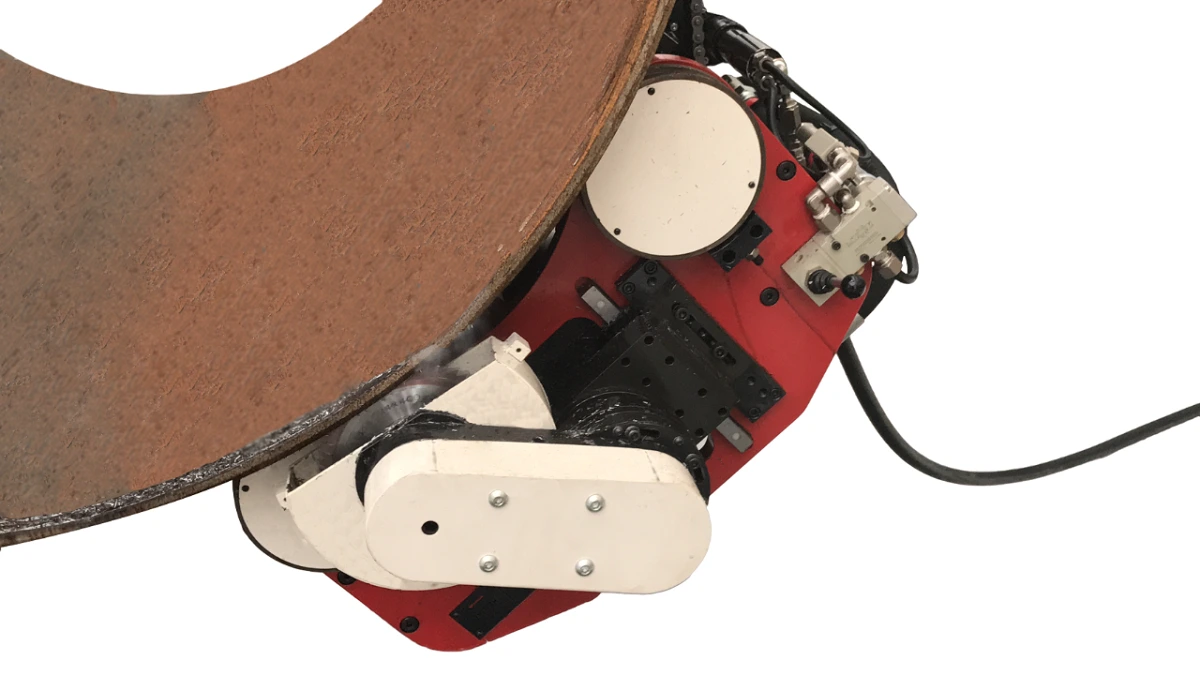

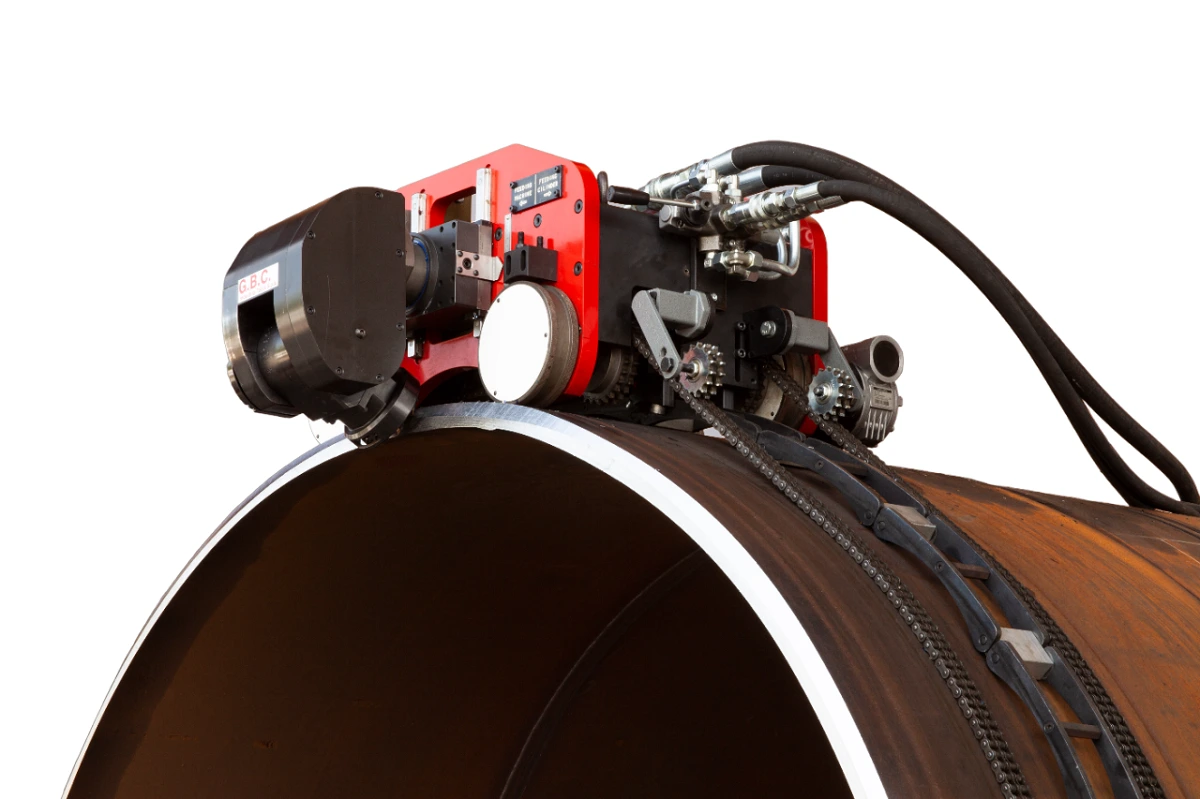

TAF – Pictures

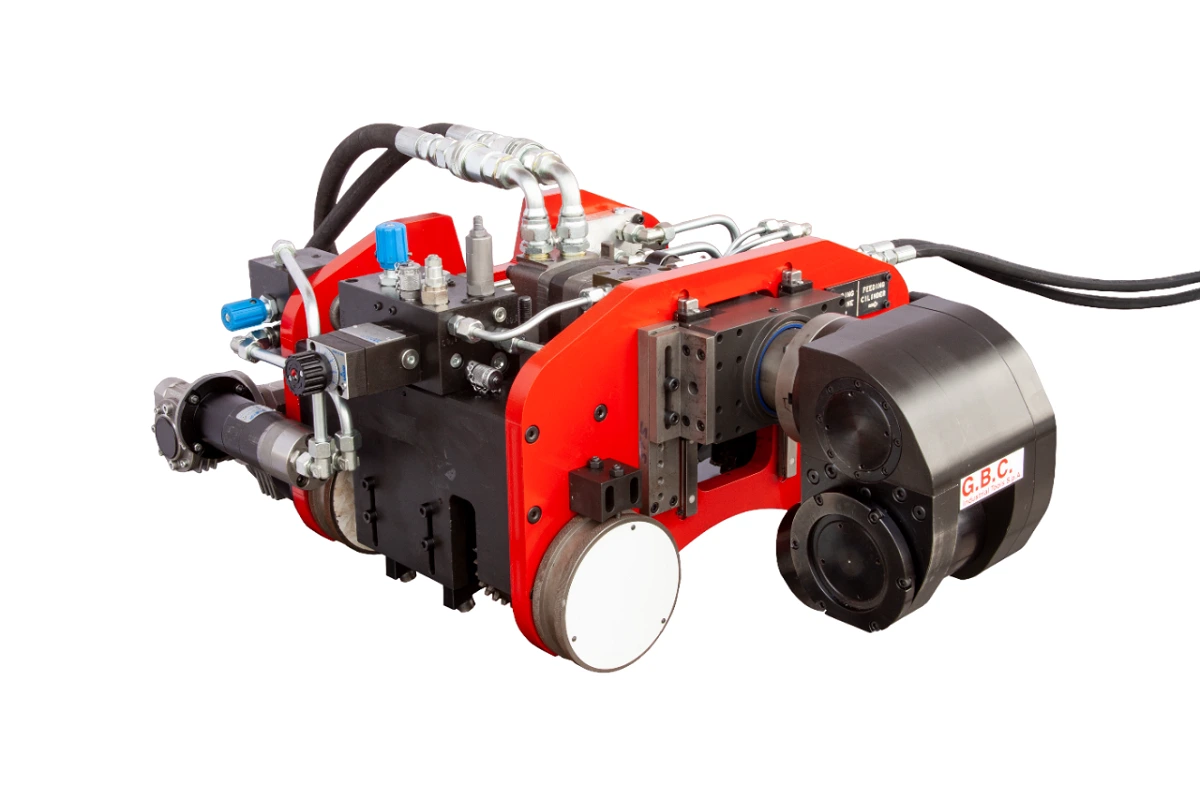

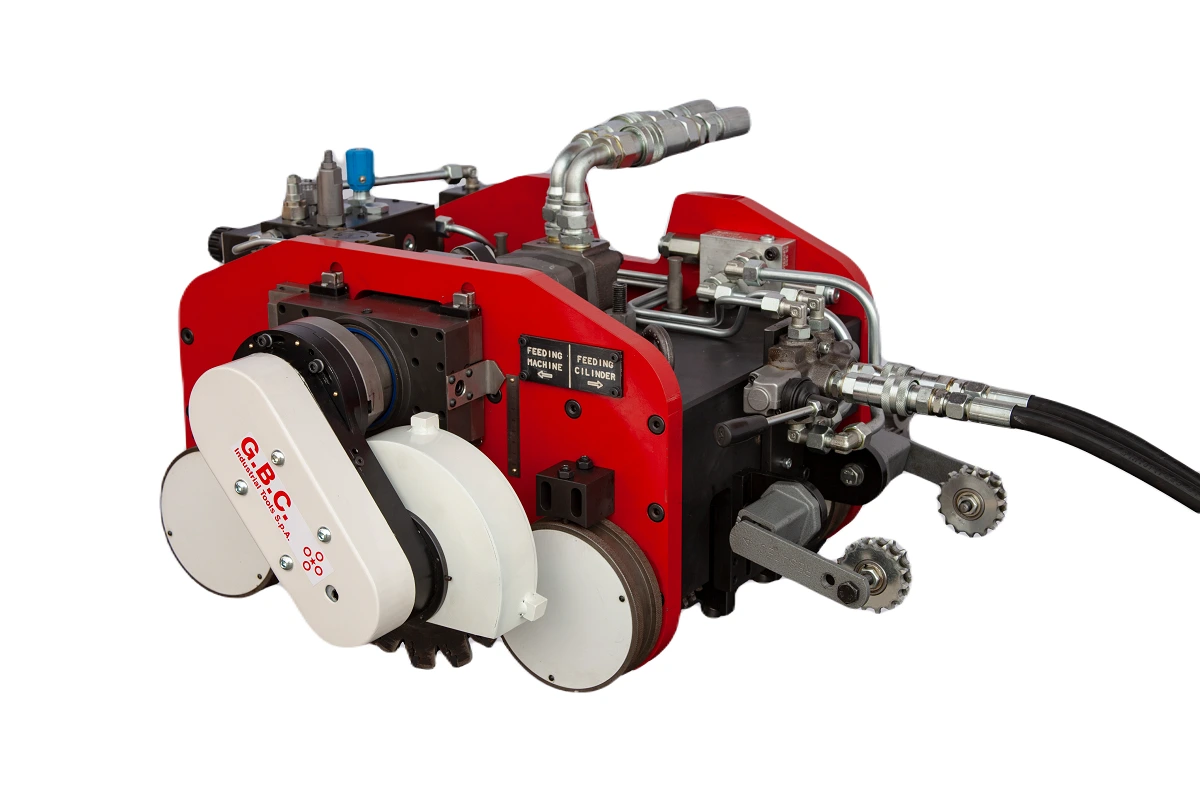

TAF Crawling pipe cutting machine
TAF Crawling pipe cutting machine
TAF Crawling pipe cutting machine
TAF Crawling pipe cutting machine
TAF Crawling pipe cutting machine
TAF Crawling pipe cutting machine
TAF Crawling pipe cutting machine
TAF Crawling pipe cutting machine

TAF – Video

Enquire now
Download the data sheet

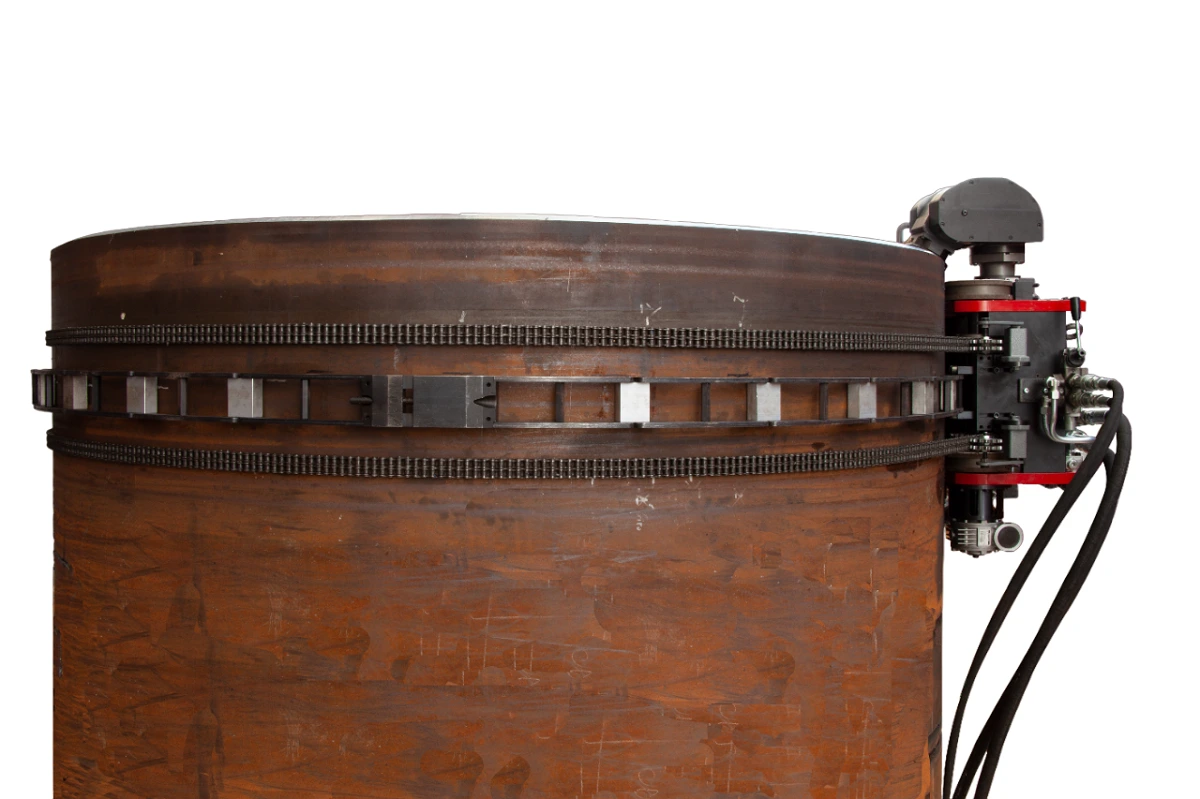

The TAF cold pipe cutter is a machine for cold cutting and beveling of pipes with an innovative chain locking system, thanks to which we can guarantee excellent stability of the machine during the cutting phase.

With the TAF chain pipe cutter you will not have problems regarding the maximum dimensions of the pipe to be cut because thanks to the chains it has a potentially infinite range.

The TAF pipe cutter is widely used in demolition, even of large tanks, especially in places with the risk of fire or explosion, where the flame cannot be used.

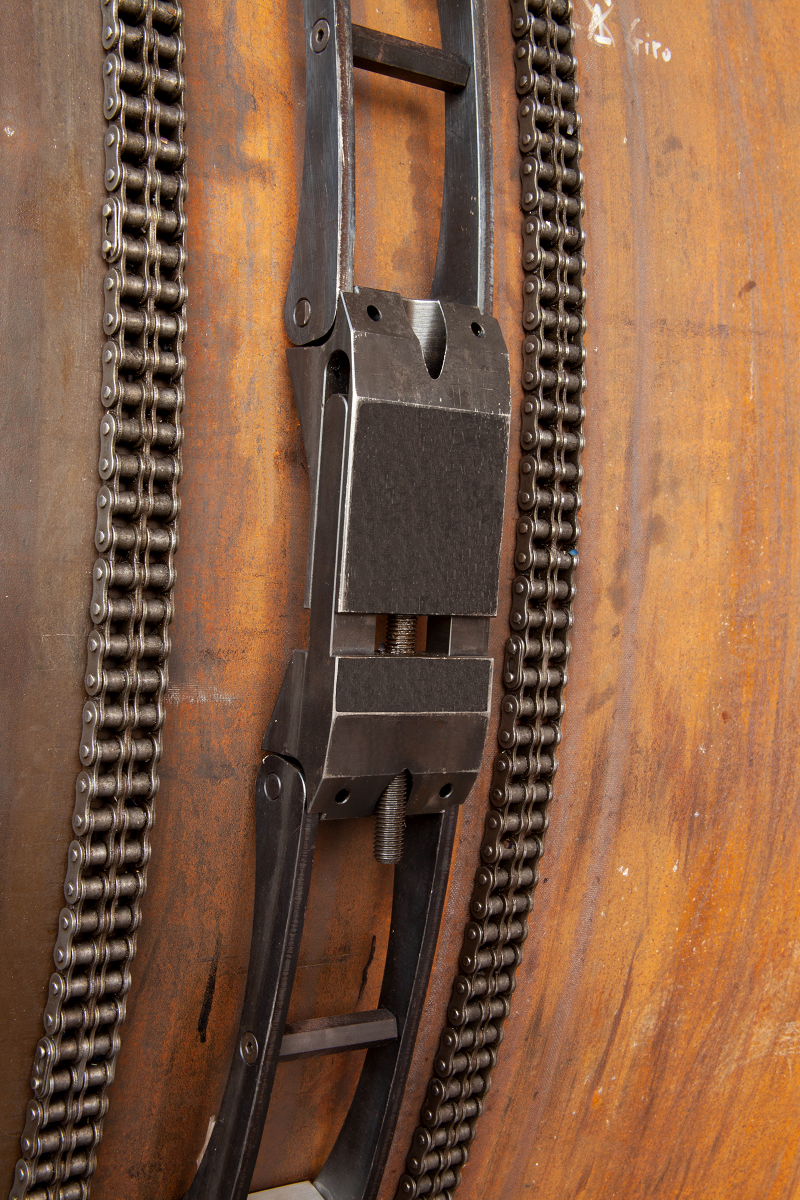

The combination of two lateral chains and a central guide band ensure high precision and a high degree of finishing in the execution of the various processing phases. In particular, the guide band allows you to follow a perfect linear trajectory, completing the cut at the exact starting point.

The simple and quick setup and an innovative design constitute the added value of this cold pipe cutter. The feeding system is equipped with rubber wheels which ensure strong grip and therefore enables the machine to be set up in any position.

The TAF chain pipe cutter has two motors available at the customer’s choice, pneumatic or hydraulic.

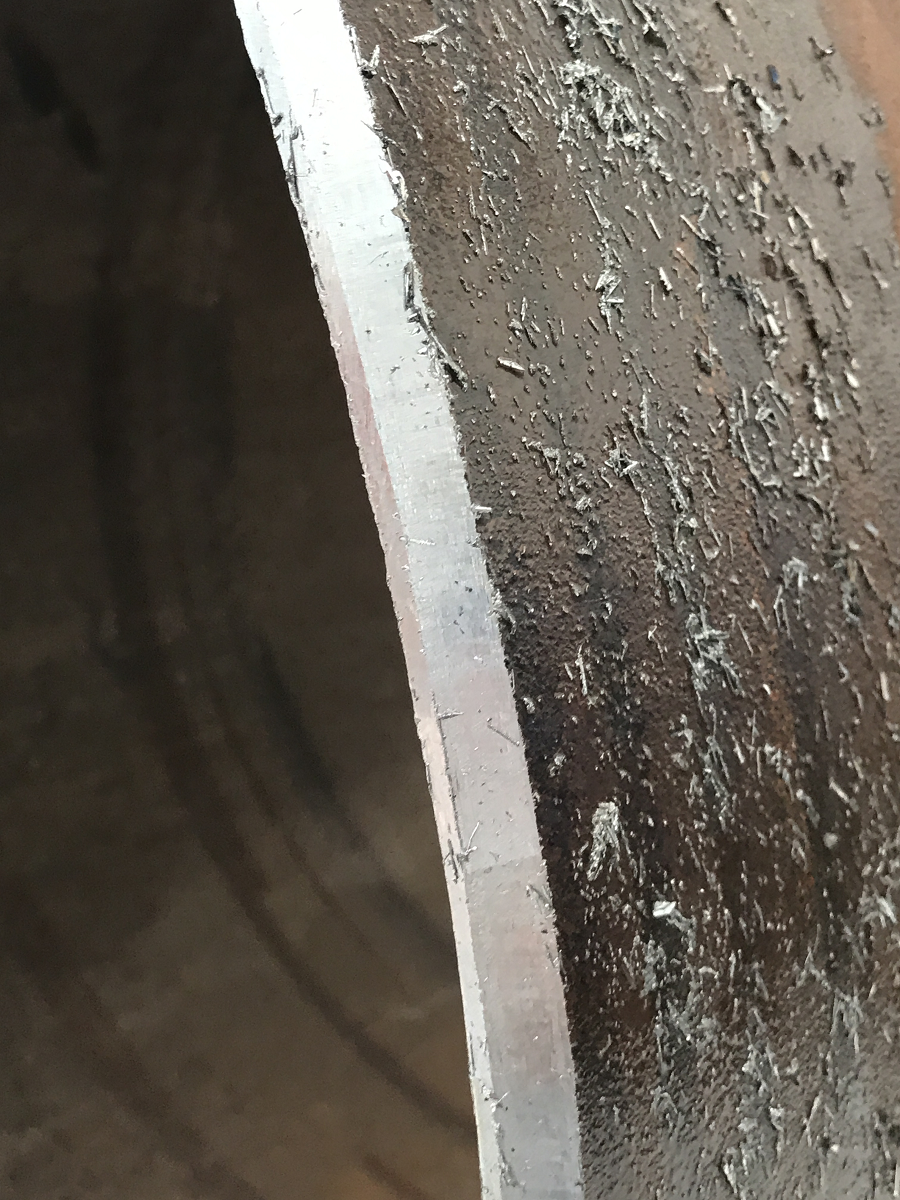

In the hydraulic version, our cold pipe cutter can also perform chamfering on thicknesses up to 50 mm.

Contact us if you are interested in TAF or would like to receive a free quote.

You might also be interested in

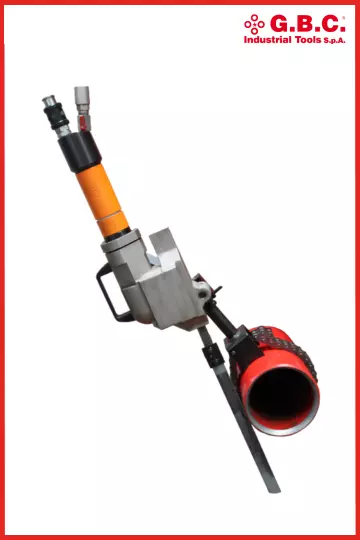

GBC2700

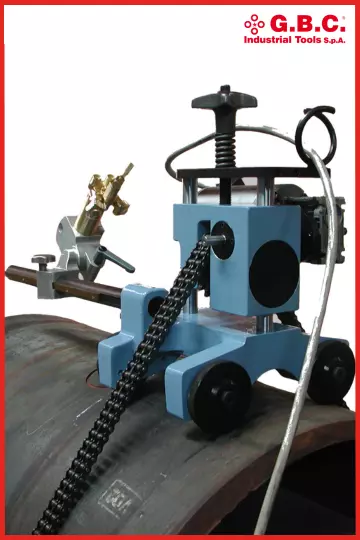

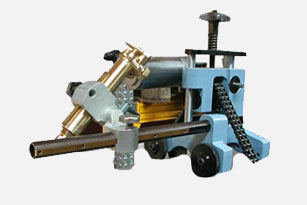

GBCUT Tagliatubi a fiamma

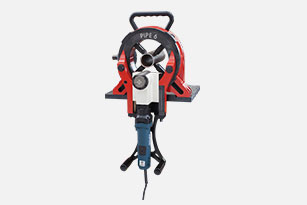

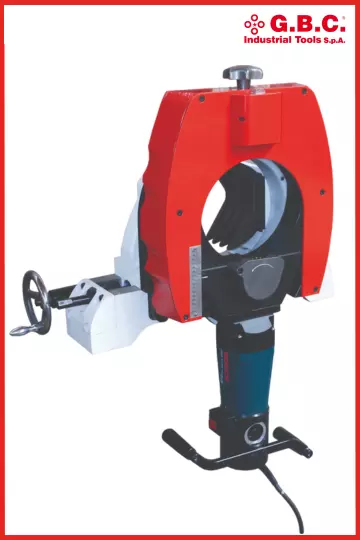

Pipe 4 Pipe 8 Tagliatubi orbitali
